Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|
Appearance
This topic provides the appearance of the N63E-22 cabinet.
The N63E-22 cabinet is an ETSI 300 mm middle standing pillar cabinet of NC purple grey.
The N63E-22 cabinet houses the MA5600T ETSI subrack and MA5608T chassis.
The N63E-22 cabinet consists of the rack (main frame), a front door, a rear panel fixed by screws, and side panels on the left and right sides.
The door of the N63E-22 cabinet is removable and the top of the cabinet has the grounding point.

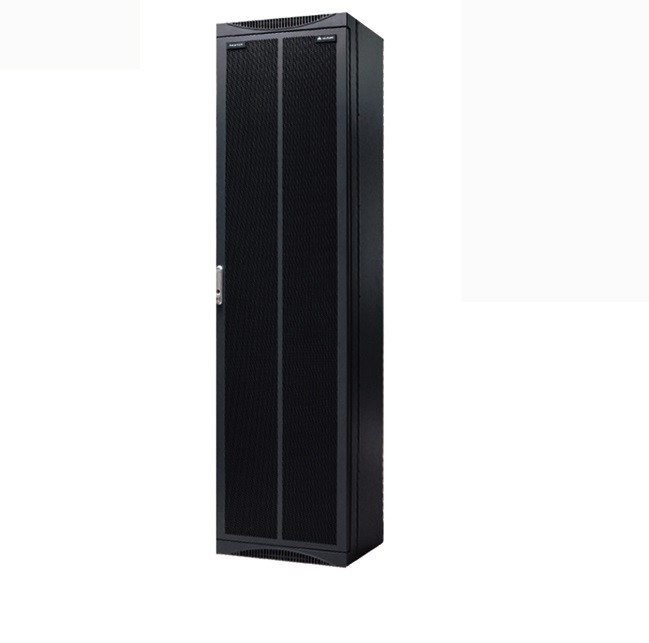

Figure 1 Appearance of the N63E-22 cabinet
Specification
This topic provides the dimensions, weight and power parameters of the N63E-22 cabinet.
Installation Size
Figure 1 Dimensions of the N63E-22 cabinet
Table 1 Dimensions and weight of the N63E-22 cabinet
Parameter | Specification |
Standard compliance | ETSI cabinet (21-inch): ETSI 300 119-3 |
Weight (empty cabinet) | 45 kg |
Dimensions (W x D x H) | 600 mm x 300 mm x 2200 mm |
Installation dimensions of the cabinet top | Installation interface Hole positions: 413 mm x 200 mm (W x D) Nut specifications: four M8 nuts |
Installation dimensions of the cabinet bottom | Installation interface Hole positions: 413 mm x 187 mm (W x D) Bolt specifications: four M12 expansion bolts |
Distance between mounting bar holes | 1 SU = 25 mm. (SU: System Unit.) |
Available space | 83 SU |
Angle opening width | 500 mm |
Fixing centres | 515 mm |
Distance between the installation surface of the mounting bar and the inner side of the air filter on the cabinet front door | 47 mm |
NOTE:
For cabinet power parameters, see relevant PDB parameter requirements.
Configuration (MA5608T)
The N63E-22 cabinet adopts the DC power. This topic describes the MA5608T configuration of the N63E-22 cabinet, and lists the maximum number of chassises of the cabinet.
The N63E-22 cabinet has the following configurations:
Configuration of one MA5608T
Configuration of two MA5608T
Configuration of One MA5608T
shows the configuration of the N63E-22 cabinet installed with one MA5608T.
Figure 1 Configuration of the N63E-22 cabinet installed with one MA5608T
Configuration of Two MA5608T
shows the configuration of the N63E-22 cabinet installed with two MA5608T.
Figure 2 Configuration of the N63E-22 cabinet installed with two MA5608T
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
