Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|
IEC Fan Tray (FCBC)
A fan tray functions heat dissipation, monitoring, and fan speed adjustment, which ensures that the device works at a stable temperature.
Appearance

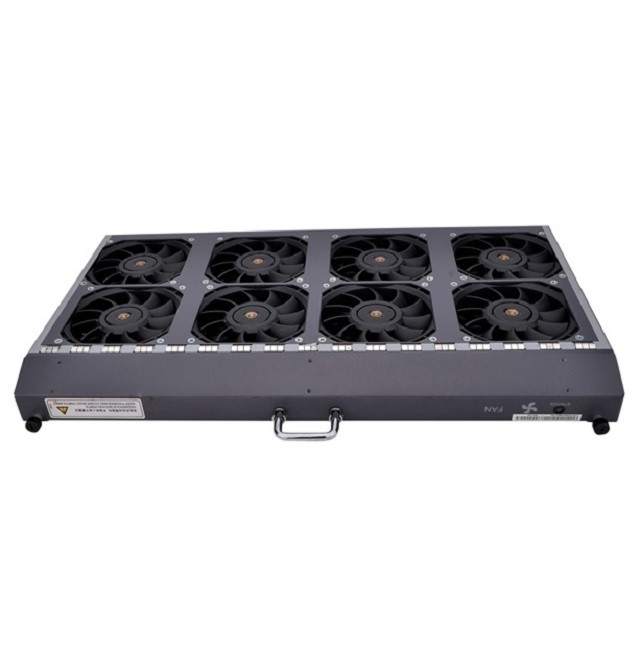

Eight fans are configured in the IEC fan tray (FCBC) of the MA5600T.
Specification
Item | Specification |
Dimensions (W x D x H) | 438.00 mm x 245.00 mm x 38.50 mm |
Weight | 2.20 kg |
Power consumption | Static: 17 W Maximum: 52 W |
Function
The functions of the fan tray are as follows:
Heat dissipation
The fan tray is at the top of the service subrack and exhausts hot air for heat dissipation. The cool air flows to the subrack from the bottom of the subrack and then is exhausted from the top of the subrack after passing the boards.
Monitoring
The fan tray is configured with the fan monitoring board to detect whether the fans are working in the normal state. The fan monitoring board also provides the port for communication with the control board. The detected information is transmitted to the control board through the fan monitoring board periodically.
Speed adjustment
The rotating speed of the fans can be adjusted according to the detected temperature automatically or be adjusted by setting the related data manually.
LED
Indicator | Status | Meaning | Operation Description |
STATUS | Yellow: blinks every 0.3s | The fan tray is not registered or is being loaded. | No action is required. |
The communication between the host and the fan tray is interrupted. | Check communication between the fan tray and device. | ||
Green: blinks | The fan tray works in the normal state. | No action is required. | |
Yellow: blinks every 1s | The fan tray generates alarms that do not affect services. | Handle it based on the corresponding alarm. | |
Red: blinks | The fan tray is faulty or the fan tray generates an over-temperature alarm. | Increase the fan speed to lower the temperature. Replace the faulty fan tray. |
NOTE:
When only one PRTE board is configured, the LED turns yellow and blinks. The services are not affected.
DIP Switches
The fan tray uses the FCBC monitoring board, which provides a set of DIP switches. This section describes the indications and settings of the DIP switches SW2. The following figure shows the layout of DIP switches and default settings.
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
