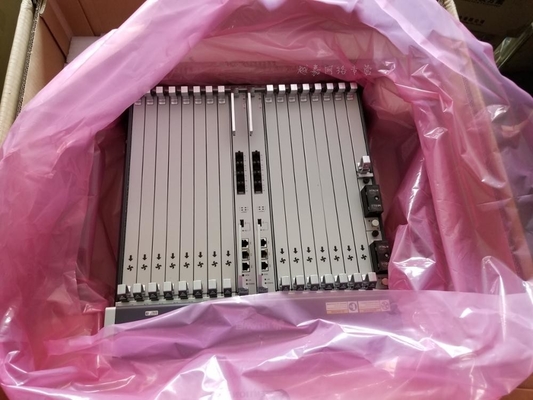

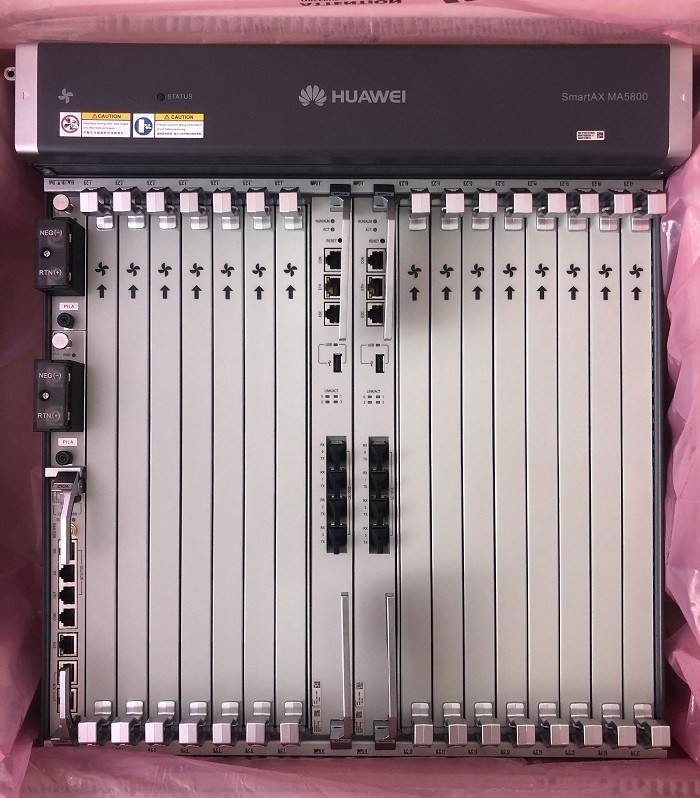

Huawei SmartAX MA5800-X17 OLT EA5800 gphf gpsf gplf gpuf gpsfe xghd xehd xeld xgsf xsed twed cshf cgid cghf oxhd oghk oxeg nxed

The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.

MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.

• Each service slot offers 200 Gbit/s throughput capability, guaranteeing non-blocking access for high-density XG-PON and 40G-PON
• Each sub-rack supports up to 32K users with 100 Mbit/s of non-blocking bandwidth, allowing seamless 4K video viewing
• Full-service PON/P2P access for home, enterprise, and mobile backhaul creates a single optical network with FMC services

  Item	MA5800-X17	MA5800-X15
  Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm
  Maximum Number of Ports in a Subrack	272 x GPON/EPON	240 x GPON/EPON
  	816 x GE/FE	720 x GE/FE
  	136 x 10G GPON/10G EPON	120 x 10G GPON/10G EPON
  	136 x 10G GE	120 x 10G GE
  	544 x E1	480 x E1
  Switching Capacity of the System	7 Tbit/s
  Maximum Number of MAC Addresses	262,143
  Maximum Number of ARP/Routing Entries	64K
  Ambient Temperature	-40°C to 65°C
  	Note: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
  Working Voltage Range	-38.4V DC to -72V DC
  Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
  Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
  MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
  IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
  Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
  QoS	Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL
  System Reliability	GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
