Huawei MPLB Control Board H901MPLB GPHF GPSF GPLF MPLA MPLB MPSC MA5800-X2 X7 X15 X17 OLT PILA PISB OGHK OXHD XGHD XEHD NXED

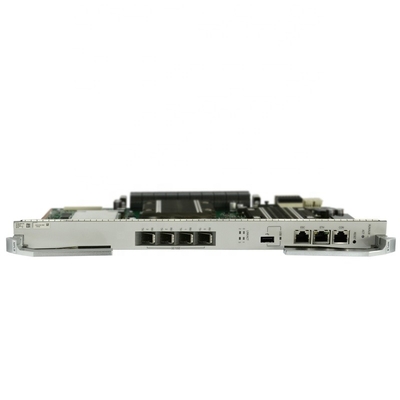

H901MPLB Board Description

The H901MPLB board is a control board. It is the core of the system control and service switching and aggregation. The H901MPLB board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the H901MPLB board configures, manages, and controls the device, and also implements the simple route protocol functions.

Feature and Specifications

Comparison Between Boards of the Same Type

This topic describes differences on functions and specifications between boards of the same type.

Control Boards Comparison

All control boards support the functions as below:

Active/standby switchover at the control panel

Load sharing at the forwarding panel

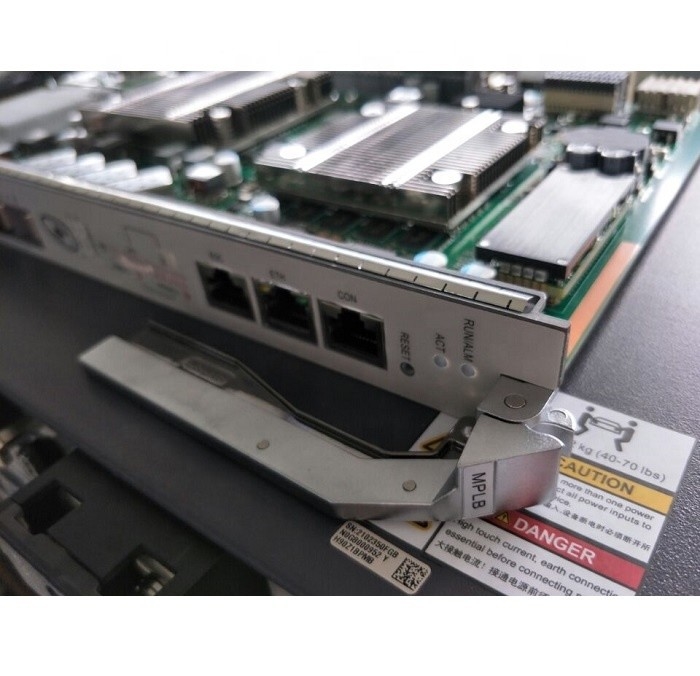

Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH

Environmental monitoring through environment monitoring serial port ESC

 NOTE:

For H901MPSC board, the maintenance serial port (CON) and environment monitoring serial port (ESC) sharing the same port.

In the table, "Yes" indicates "supported" and "No" indicates "not supported".

Table 1 Differences between control boards

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

     Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking  products with more than 5000 customers.

     We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.

    Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
