Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | MPSC | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Type: | MA5800 | Warranty: | 1 Year |
| Skype: | Poppylee7 | Port: | Shenzhen |

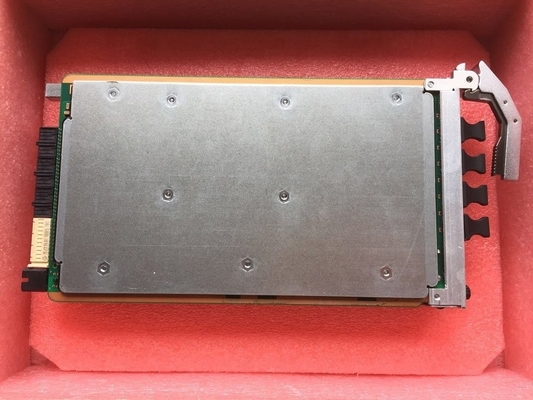

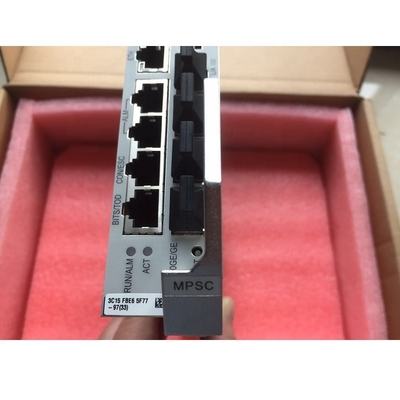

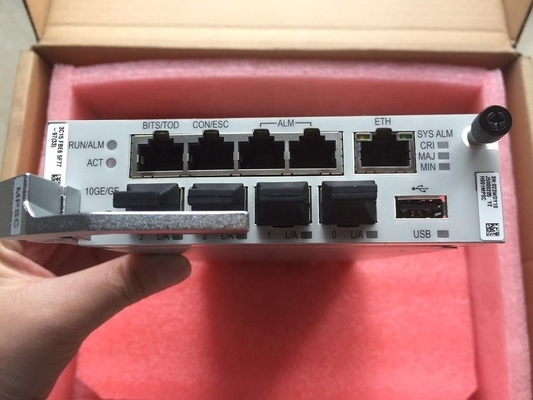

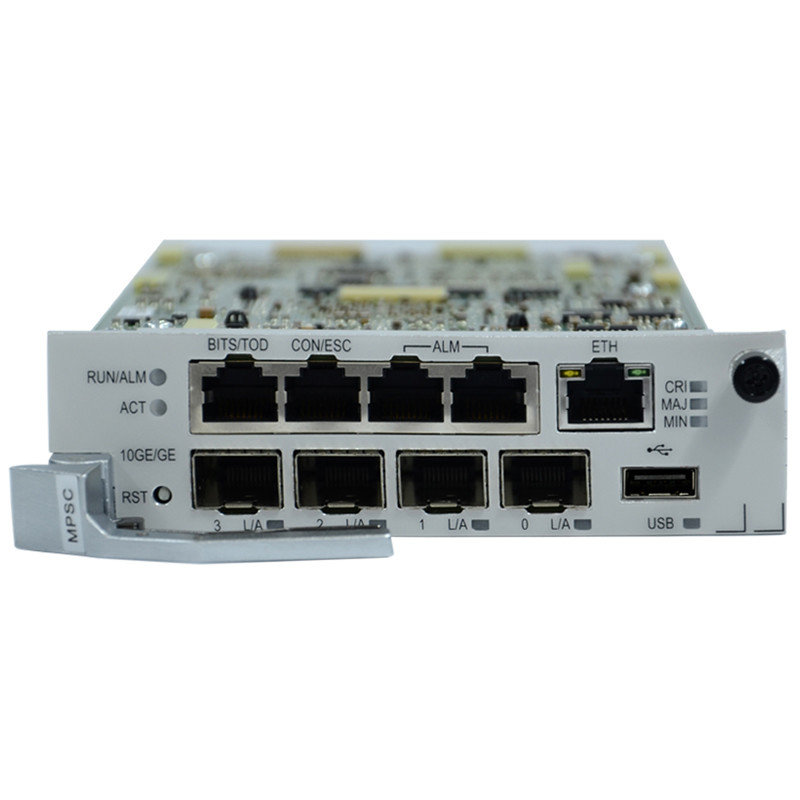

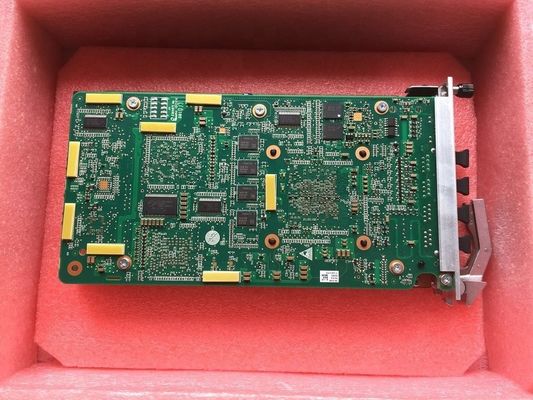

H901MPSC Board Description
The H901MPSC board is a control board. It is the core of the system control and service switching and aggregation. The H901MPSC board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband channel. In this manner, the H901MPSC board configures, manages, and controls the device, and also implements the simple route protocol functions.
Feature and Specifications
Comparison Between Boards of the Same Type
This topic describes differences on functions and specifications between boards of the same type.
Control Boards Comparison
All control boards support the functions as below:
Active/standby switchover at the control panel
Load sharing at the forwarding panel
Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
Environmental monitoring through environment monitoring serial port ESC
NOTE:
For H901MPSC board, the maintenance serial port (CON) and environment monitoring serial port (ESC) sharing the same port.
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Differences between control boards
| Board | H901MPLB | H901MPSC |
| Maximum Bandwidth per Slot(load sharing mode) | 200 Gbit/s | 80 Gbit/s |
| Upstream transmission or cascading port | 4 x 10GE/GE ports | 4 x 10GE/GE ports |
| ALM port | No | Yes (7 Boolean value inputs and 1 Boolean value output) |
| BITS/TOD port | No | Yes (1 external clock/time input and output) |
| MAC address table | 262143 | 262143 |
| Access ONT | 17408 | 4096 |
| Multicast user | 17408 | 4000 |
| Number of static programs configurable | 4096 (Before the V100R017C00 version) | 8192 (V100R017C10 and later versions) |
| 8192 (V100R017C00 and later versions) | ||
| Maximum number of online programs supported | V100R016C00 version: 4000 | V100R017C10 and later versions: |
| V100R016C10 version: | IPv4: 8000 | |
| IPv4: 4000 | IPv6: 2000 | |
| IPv6: 2000 | ||
| V100R017C10 and later versions: | ||
| IPv4: 8000 | ||
| IPv6: 2000 | ||
| IPv4 routing table | 65536 | 65536 |
| IPv6 routing table | 16384 | 16384 |
| Service port | 139264 | 32768 |
| ARP table | 65536 | 65536 |
| Ethernet synchronization | Yes | Yes |
| 1588v2 | Yes | Yes |
| 1588ACR | Yes | No |
| VAN | Yes (requires license loaded by U2000) | No |
| D-CCAP | Yes | Yes |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
