Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

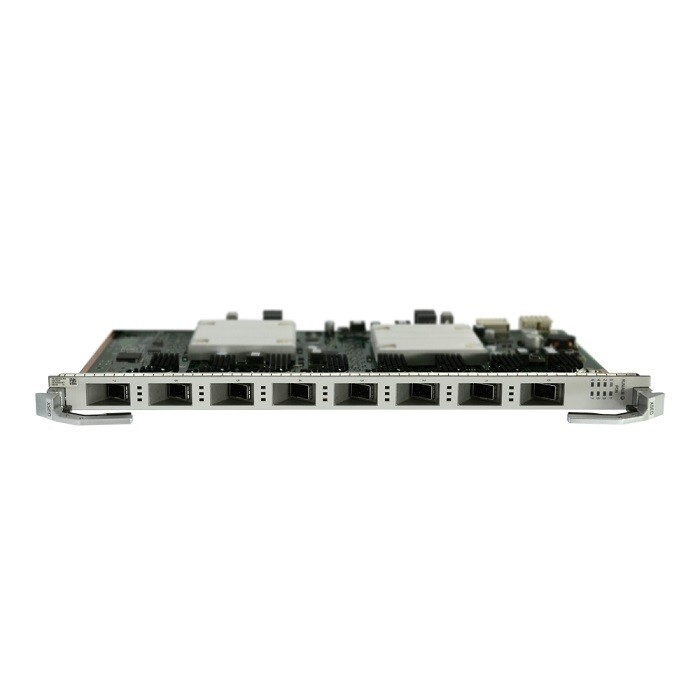

H901XSED Board DescriptionThe H901XSED board is an 8-port symmetric 10G GPON interface board. It works together with the optical network terminal (ONU) to provide 10G GPON access services.
Parameters
Board Parameter
You can query power consumption, weight, maximum frame size, and normal operating temperature of all boards.
Table 1 lists the power consumption, weight, and maximum frame size of boards.
The operating temperature of H901XSED and H901TWED is -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2) and the lowest board startup temperature is -25°C. The operating temperature of other boards is -40°C to +65°C and the lowest board startup temperature is -25°C.
NOTE:
The power consumption of a board is calculated based on the following conditions:
Operating voltage: -53.5 V DC.
Ambient temperature: 25°C.
Static power consumption: All ports do not carry any loads and optical modules are not installed on optical ports.
Maximum power consumption: All ports fully carry loads.
The board power consumption slightly varies with the power module configured for the board and discreteness of components.
Table 1 Power consumption and maximum frame size of boards
Board | Power Consumption | Weight | Maximum Frame Size |
E1 interface board | |||
H901EDSH | Static: 26 W Maximum: 28 W | 0.93 kg | N/A |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
