Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | XELD | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Type: | MA5800 | Warranty: | 1 Year |
| Port: | Shenzhen |

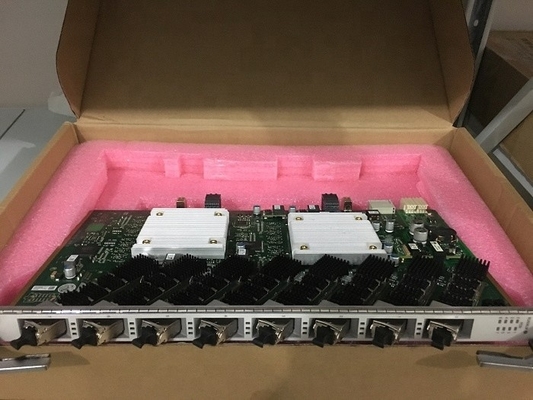

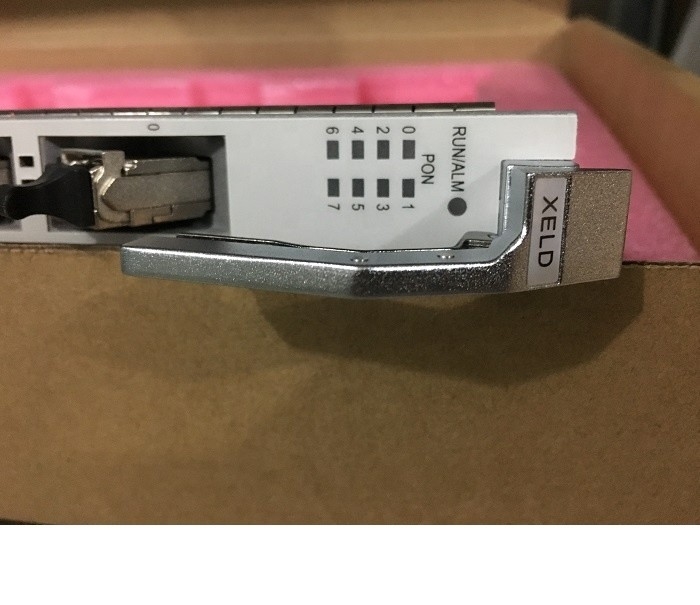

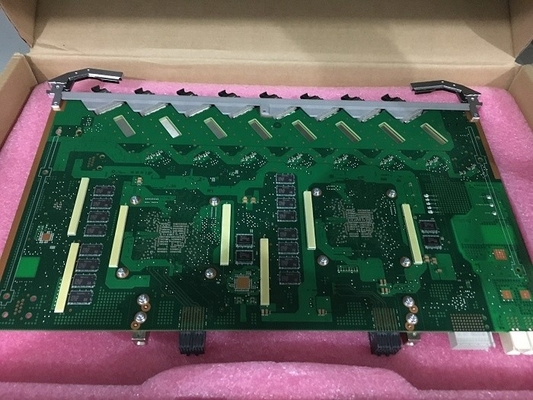

10G XGBD XGHD XEHD XEBD XELD
H901XSED Board DescriptionThe H901XSED board is an 8-port symmetric 10G GPON interface board. It works together with the optical network terminal (ONU) to provide 10G GPON access services.
HUAWEI MA5800 BOARD LIST:
gphf gpsf gplf gpuf gpsfe xghd xehd xeld xgsf xsed twed cshf cgid cghf oxhd oghk oxeg nxed
H901MPLA
H902MPLA
H903MPLA
H901MPLB
H902MPLB
H901MPLC
H901MPSC
H901NXED
H902NXED
H901CIUA
H902CIUA
H901PILA
H902PILA
H901PISA
H901PISB
H901GPHF
H902GPHF
H901GPLF
H901GPSF
H901GPUF
H901XGHD
H901XGLD
H901XGSF
H901XGLF
Feature and Specifications
Comparison Between Boards of the Same Type
This topic describes differences on functions and specifications between boards of the same type.
Control Boards Comparison
All control boards support the functions as below:
Active/standby switchover at the control panel
Load sharing at the forwarding panel
Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
Environmental monitoring through environment monitoring serial port ESC
NOTE:
For H901MPSC board, the maintenance serial port (CON) and environment monitoring serial port (ESC) sharing the same port.
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Differences between control boards
| Board | H901MPLA | H902MPLA | H901MPLB | H901MPSC |
| Maximum Bandwidth per Slot(load sharing mode) | 100 Gbit/s | 100 Gbit/s | 200 Gbit/s | 80 Gbit/s |
| Upstream transmission or cascading port | 4 x 10GE/GE ports | 4 x 10GE/GE ports | 4 x 10GE/GE ports | 4 x 10GE/GE ports |
| ALM port | No | No | No | Yes (7 Boolean value inputs and 1 Boolean value output) |
| BITS/TOD port | No | No | No | Yes (1 external clock/time input and output) |
| MAC address table | 262143 | 262143 | 262143 | 262143 |
| Access ONT | 17408 | 17408 | 17408 | 4096 |
| Multicast user | 17408 | 17408 | 17408 | 4000 |
| Number of static programs configurable | 4096 (Before the V100R017C00 version) | 8192 | 4096 (Before the V100R017C00 version) | 8192 (V100R017C10 and later versions) |
| 8192 (V100R017C00 and later versions) | 8192 (V100R017C00 and later versions) | |||
| Maximum number of online programs supported | V100R016C00 version: 4000 | IPv4: 8000 | V100R016C00 version: 4000 | V100R017C10 and later versions: |
| V100R016C10 version: | IPv6: 2000 | V100R016C10 version: | IPv4: 8000 | |
| IPv4: 4000 | IPv4: 4000 | IPv6: 2000 | ||
| IPv6: 2000 | IPv6: 2000 | |||
| V100R017C10 and later versions: | V100R017C10 and later versions: | |||
| IPv4: 8000 | IPv4: 8000 | |||
| IPv6: 2000 | IPv6: 2000 | |||
| IPv4 routing table | 65536 | 65536 | 65536 | 65536 |
| IPv6 routing table | 16384 | 16384 | 16384 | 16384 |
| Service port | 139264 | 139264 | 139264 | 32768 |
| ARP table | 65536 | 65536 | 65536 | 65536 |
| Ethernet synchronization | Yes | Yes | Yes | Yes |
| 1588v2 | Yes | Yes | Yes | Yes |
| 1588ACR | Yes | Yes | Yes | No |
| VAN | Yes (requires license loaded by U2000) | Yes (requires license loaded by U2000) | Yes (requires license loaded by U2000) | No |
| D-CCAP | Yes | Yes | Yes | Yes |
