150 W DC Power Module
Product Support
Table 1 lists the switch models supporting a 150 W DC power module.
Table 1 Product support for a 150 W DC power module
Power Module Name | Product Support |
LS5M100PWD00 (purplish grey) | S5700-28C-EI, S5700-28C-EI-24S, S5700-52C-EI, S5700-28C-SI, S5700-52C-SI, S5710-28C-LI, S5710-52C-LI |
ES0W2PSD0150(black) | S5700-28P-LI-BAT, S5700-28P-LI-24S-BAT, S5710-28C-EI, S5710-52C-EI, S5720-28P-SI-AC, S5720-28X-SI-AC, S5720-28X-SI-DC, S5720-52P-SI-AC, S5720-52X-SI-AC, S5720-52X-SI-DC, S5721-28X-SI-24S-AC, S5720-36C-EI-AC, S5720-36C-EI-DC, S5720-56C-EI-AC, S5720-56C-EI-DC, S5720-36C-EI-28S-AC, S5720-36C-EI-28S-DC, S5720-56C-EI-48S-AC, S5720-56C-EI-48S-DC, S5720-36PC-EI-AC, S5720-56PC-EI-AC, S5730-48C-SI-AC, S5730-68C-SI-AC, S5730S-48C-EI-AC, S5730S-68C-EI-AC S6720-32X-SI-32S-AC, S6720-26Q-SI-24S-AC, S6720S-26Q-SI-24S-AC, S6720-32C-SI-AC, S6720-32C-SI-DC |
Appearance

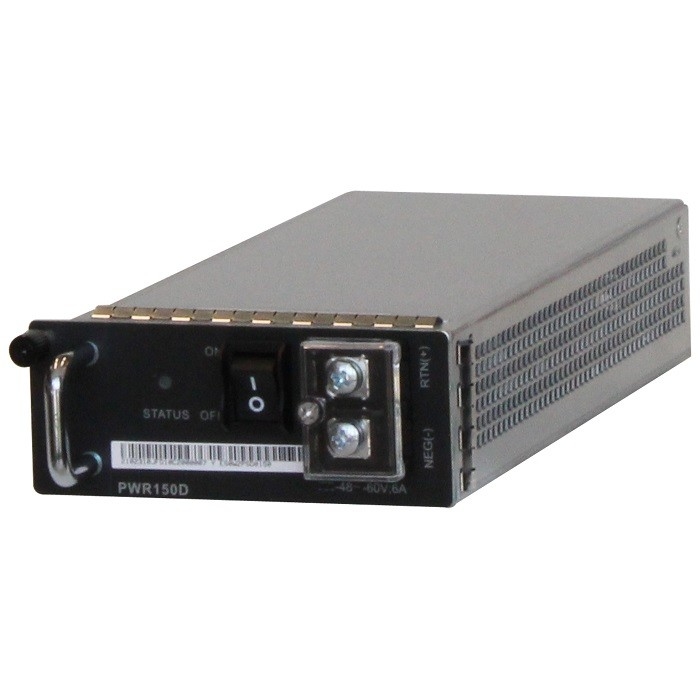

Figure 1 Appearance of a 150 W DC power module (LS5M100PWD00)

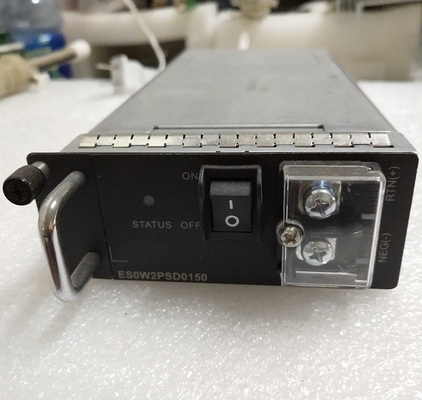

Figure 2 Appearance of a 150 W DC power module (ES0W2PSD0150)
Function
Table 2 describes the functions of a 150 W DC power module.
Table 2 Functions of a 150 W DC power module
Function | Description |
Alarm function | Alarms for various power supply events, such as no power input, air breaker status, ineffective surge protection, and input undervoltage are supported. |
Short circuit | - |
Surge protection | - |
Hot swap | Supported |
Panel Description
Figure 3 Panel of a 150 W DC power module (LS5M100PWD00)

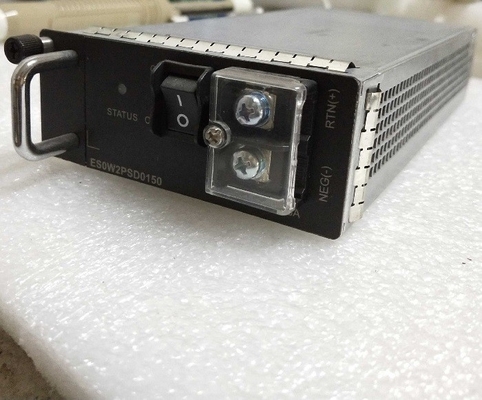

Figure 4 Panel of a 150 W DC power module (ES0W2PSD0150)
1. Handle
2. Power status indicator
3. Power switch
4. DC power terminal
5. Captive screw
Table 3 describes indicators on a 150 W DC power module panel.
Table 3 Description of indicators on a 150 W DC power module panel
Indicator | Color | Description |
STATUS | Green | Off: The input power is out of range, for example, no DC input power, DC input overvoltage, or DC input undervoltage. The output power is out of range, for example, undervoltage or overtemperature occurs. Steady on: The DC power input is in the normal range. Blinking: The output power is out of range, for example, overvoltage, overcurrent, or short circuit occurs. |
Specifications
Table 4 describes technical specifications of a 150 W DC power module.
Table 4 Technical specifications of a 150 W DC power module
Item | Description |
Dimensions (W x D x H) | 100 mm x 205 mm x 40 mm (3.9 in. x 8.1 in. x 1.6 in.) |
Weight | 0.8 kg (1.76 lb) |
Rated input voltage range | -48 V DC to -60 V DC |
Maximum input voltage range | -36 V DC to -72 V DC |
Maximum input current | 6 A |
Maximum output current | 12.5 A |
Rated output voltage | 12 V |
Maximum output power | 150 W |
Part number | LS5M100PWD00: 02316784 ES0W2PSD0150: 02310JFD |
