580 W AC PoE Power Module
Product Support
Table 1 lists the switch models supporting a 580 W AC PoE power module.
Table 1 Product support for a 580 W AC PoE power module
| Power Module Name | Product Support |
| W2PSA0580 | S5710-52C-PWR-EI, S5710-28C-PWR-EI-AC, S5710-52C-PWR-EI-AC, S5720-56C-PWR-HI-AC1 S6720-32C-PWH-SI-AC, S6720-32C-PWH-SI, S6720-56C-PWH-SI-AC, S6720-56C-PWH-SI |
Appearance

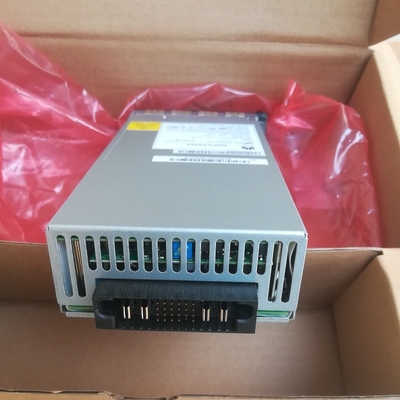

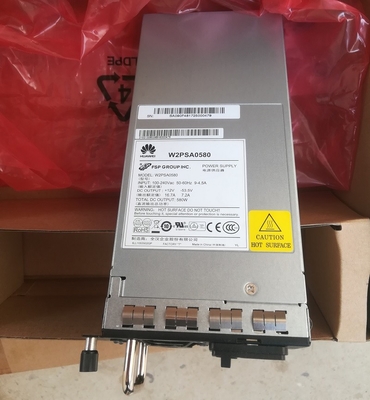

Figure 1 Appearance of the 580 W AC PoE power module
Function
Table 2 describes the functions of a 580 W AC PoE power module.
Table 2 Functions of a 580 W AC PoE power module
| Function | Description |
| PoE power supply | Provides a maximum of 380 W PoE power. |
| Input protection | Input overcurrent and undervoltage protection is provided. |
| Output protection | Output overvoltage, overcurrent, and short-circuit protection is provided. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold (75°C), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Hot swap | Supported |
NOTE:
When a power module enters overtemperature protection state, take measures to lower the ambient temperature. The power module can automatically resume power supply when the temperature falls within the normal range.
Panel Description

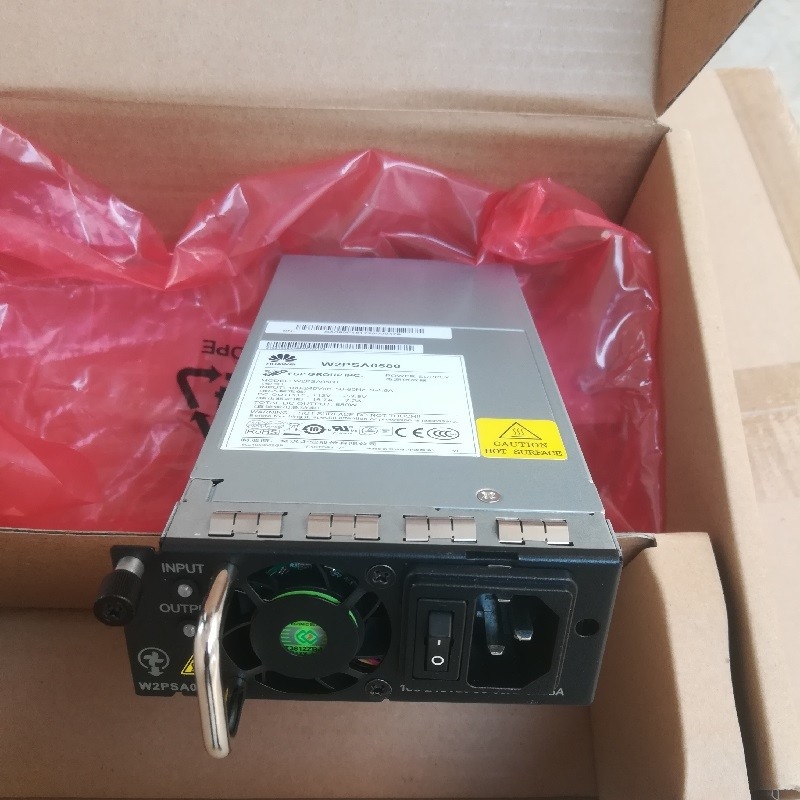

Figure 2 Panel of a 580 W AC PoE power module
| 1. Power status indicator | 2. Handle | 3. Fan | 4. Switch |
| 5. AC power socket | 6. Captive screw | 7. AC power cable locking strap | - |
Table 3 describes indicators on a 580 W AC PoE power module panel.
Table 3 Description of indicators on a 580 W AC PoE power module panel
Specifications
Table 4 describes technical specifications of a 580 W AC PoE power module.
Table 4 Technical specifications of a 580 W AC PoE power module
| Item | Description |
| Dimensions (W x D x H) | 100 mm x 205 mm x 40 mm (3.9 in. x 8.1 in. x 1.6 in.) |
| Weight | < 1.6 kg (3.53 lb) |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 290 V AC, 47 Hz to 63 Hz |
| Input current | 9 A to 4.5 A |
| Maximum output current | +12 V: 16.66 A -53.5 V: 7.11 A |
| Maximum output power | PoE: 380 W Total: 580 W |
| Part number | 02130953 |
