Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

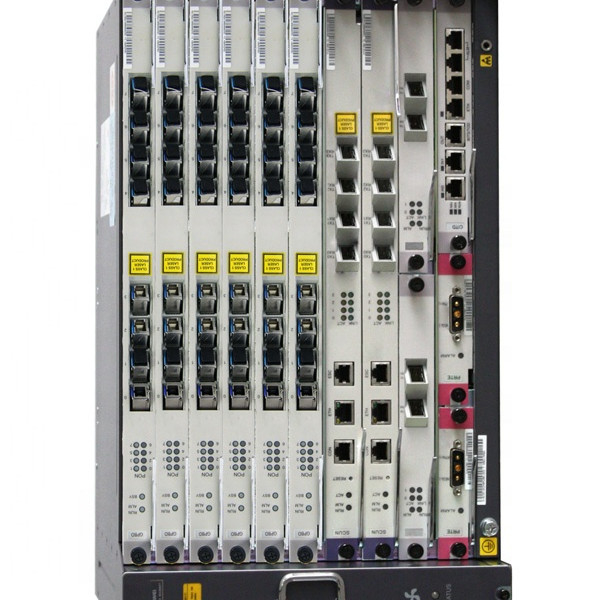

| Specifications | MA5600T | MA5603T | MA5608T |
| Dimensions (H x W x D) | 447 mm x 490 mm x 275.8 mm | 263 mm x 442 mm x 283.2 mm | 88 mm x 442 mm x 233.5 mm |
| Operating Environment | –25°C to +55°C 5% RH to 95% RH | –40°C to +65°C 5% RH to 95% RH | –40°C to +65°C 5% RH to 95% RH |
| Power | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V |
| Switching Capacity — Backplane Bus | 3.2 Tbit/s | 1.5 Tbit/s | 720 Gbit/s |
| Switching Capacity — Control Board | 1,920 Gbit/s | 960 Gbit/s | 512 Gbit/s |
| Access Capacity | 64 x 10G GPON 256 x GPON 768 x GE | 24 x 10G GPON 96 x GPON 288 x GE | 8 x 10G GPON 32 x GPON 96 x GE |
| Port Type | Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port | ||
| System Performance | Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD Maximum split ratio of 1:256 Maximum logical distance between devices: 60 km | ||
