Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | HG8040 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

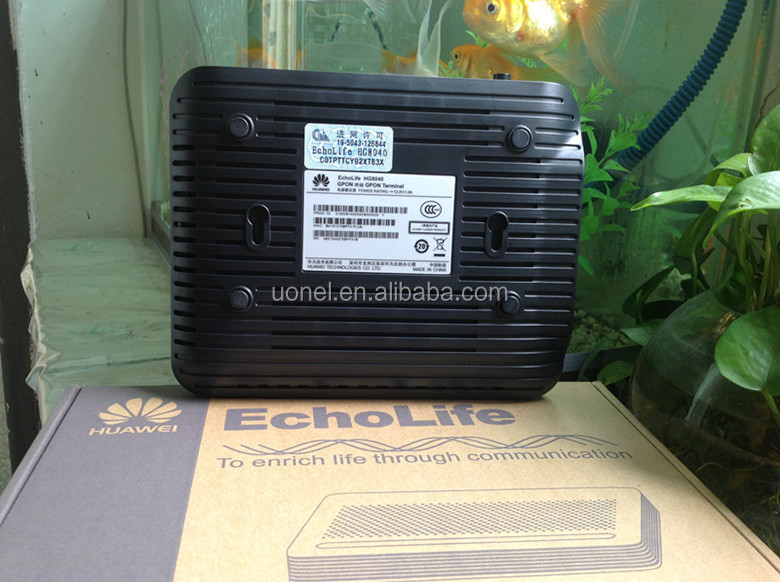

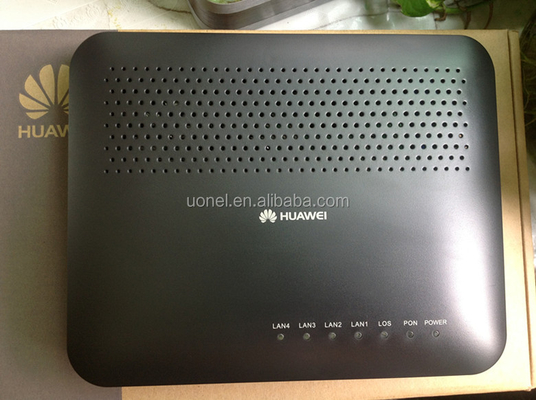

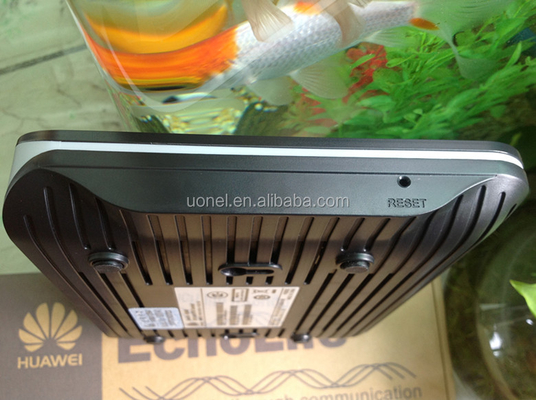

huawei echolife hg8040 gpon terminal ont optical
The EchoLife HG8040 is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra–broadband access is provided for home and SOHO users. The HG8040 provides four GE/FE auto–adapting Ethernet ports. The HG8040 features high–performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8040 provides a perfect terminal solution and future–oriented service supporting capabilities for FTTH deployment.
Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
High speed forwarding: GE line rate forwarding in the bridge scenario and 900 Mbit/s forwarding in the NAT scenario.
Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.
Applications.Benefit
High-performance forwarding capability provides an optimal terminal solution and future oriented service supporting capabilities for FTTH deployment.
Plug-and-play makes service provisioning easier and more quickly.
Abundant remote diagnosis helps to locate failure more quickly and reduce OPEX.
GPON features
Class B+ optical module.
Security authentication mode: SN, password or SN+password.
Upstream/downstream FEC.
GEM port mapping mode: VLAN, 802.1p, VLAN+ 802.1p, IPToS, physical port
Ethernet features
VLAN filtering and VLAN transparent transmission.
VLAN N:1 aggregation and VLAN 1:1 translation.
Maintenance features
Local management using Web and remote management using OMCI.
Optical power monitoring.
802.1ag Ethernet OAM.
Reliability features
Dual systems for software protection.
Type B protection and rogue ONT detection.
Green engery-saving features
Dynamic power consumption adjustment.
With a backup battery, the guaranteed services can be selected flexibly.
Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.
HUAWEI GPON ont/onu terminal HG8040 | ||||||
Dimension | 195mm × 155 mm × 34 mm | |||||
Weight | About 500g (including the power adapter) | |||||

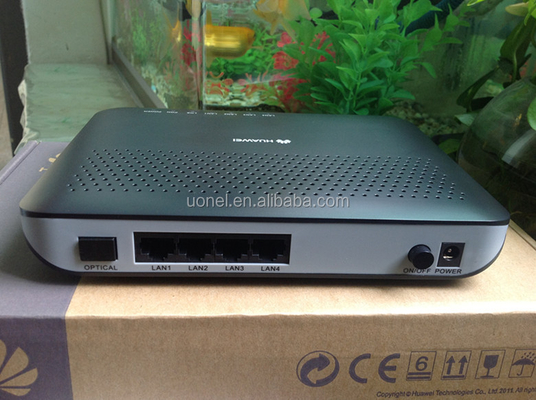

Port | 4 GE/FE auto-adapting Ethernet ports | |||||
Average power consumption | <= 6 W | |||||
Power Supply | Adapter input: 100-240 V AC, 5 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A | |||||
Operating environment | Temperature: 0°C~+40°C; Humidity: 5% – 95%, non-condensing | |||||
