Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | H806CAME |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | GPON ONU | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Warranty: | 1 Year | Skype: | Poppylee7 |
| Port: | Shenzhen |
Specifications | MA5600T | MA5603T | MA5608T |
Dimensions (H x W x D) | 447 mm x 490 mm x 275.8 mm | 263 mm x 442 mm x 283.2 mm | 88 mm x 442 mm x 233.5 mm |
Operating Environment | –25°C to +55°C 5% RH to 95% RH | –40°C to +65°C 5% RH to 95% RH | –40°C to +65°C 5% RH to 95% RH |
Power | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V |
Switching Capacity — Backplane Bus | 3.2 Tbit/s | 1.5 Tbit/s | 720 Gbit/s |
Switching Capacity — Control Board | 1,920 Gbit/s | 960 Gbit/s | 512 Gbit/s |
Access Capacity | 64 x 10G GPON 256 x GPON 768 x GE | 24 x 10G GPON 96 x GPON 288 x GE | 8 x 10G GPON 32 x GPON 96 x GE |
Port Type | Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port | ||
System Performance | Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD Maximum split ratio of 1:256 Maximum logical distance between devices: 60 km | ||

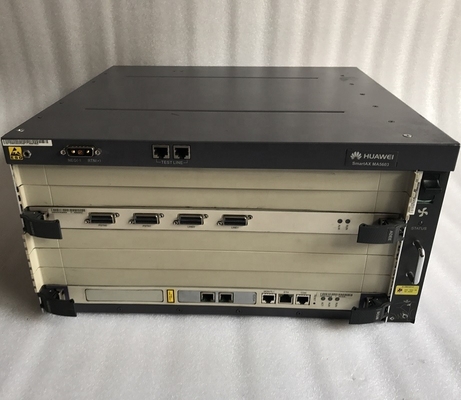

MA5603 shelf has seven slots and is installed in the cabinet through the mounting brackets. This topic provides the appearance and composition of the MA5603 shelf.
MA5603 shelf provides different functions through different service boards. This topic provides information about the functions of the MA5603 shelf.
MA5603 shelf is 5 U high. It provides seven slots for various boards. Through the configured boards, the MA5603 shelf provides ADSL2+, SHDSL, and VDSL2 services.
The service signals are transmitted upstream through the SCU board or interface board in the MA5603 shelf. The SCU board communicates and exchanges data with the service boards thorough backplane.
Ports of the MA5603 shelf :
Port | Function | Connection |
|---|---|---|
Power port | It connects the PDU or power supply device to provide power for the system. |
|
Test port | It connects the external test device to test the bandwidth of xDSL line. | Use the straight-through cable to connect the test port to the test device. |

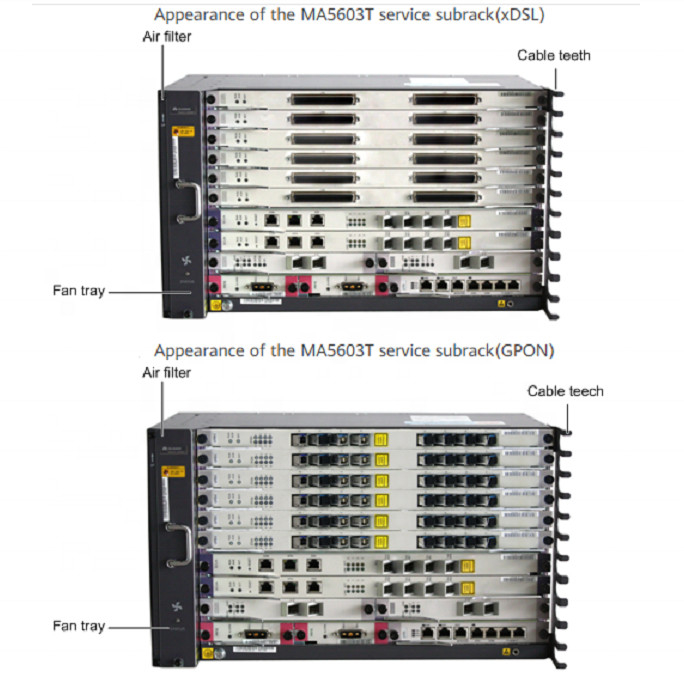

Layout of the MA5603 shelf :
Specifications of the MA5603 shelf :
Item | Specifications |
|---|---|
Dimensions (W x D x H, mounting brackets excluded) | 436 mm x 419.2 mm x 219.5 mm |
Weight of empty shelf | 15 kg |
Maximum power consumption (1 SCU + 14 ADEFs + fan tray) | 496 W |
Typical power consumption (1 SCU + 14 ADEFs + fan tray) | 298 W |
Huawei dslam ma5603 10ge epon gpon ftth olt MA5603T device price for AC DC power card standard configuration as below:
-2*PRTE Power Card
-2*SCUN Control Card
-2*GICF Uplink Card or 10ge

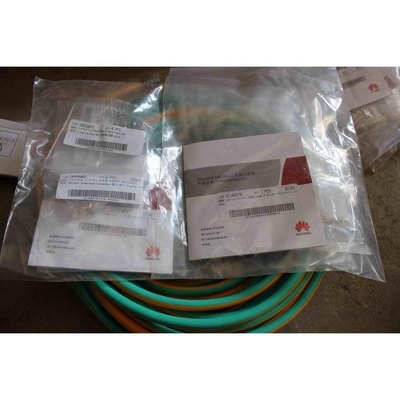

-2*Power cables
Service board for your option:
GPBD: 8ports Gpon B+ C+ C++
GPHD: 8ports Gpon B+ C+ C++
EPSD: 8ports Epon
GPFD: 16ports Gpon B+ C+ C++
EPFD: 16ports Epon
XEBD: 10G 8ports Epon
XGBD: 10G 8ports Gpon
Describe the function, front panel, port, subboard, and pin assignments of the boards used in the MA5600, and provides the specifications of the boards used in the MA5600.
