Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXMP M800 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

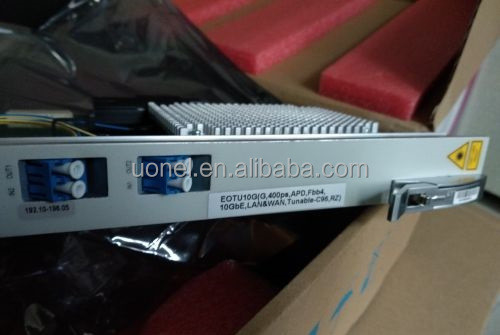

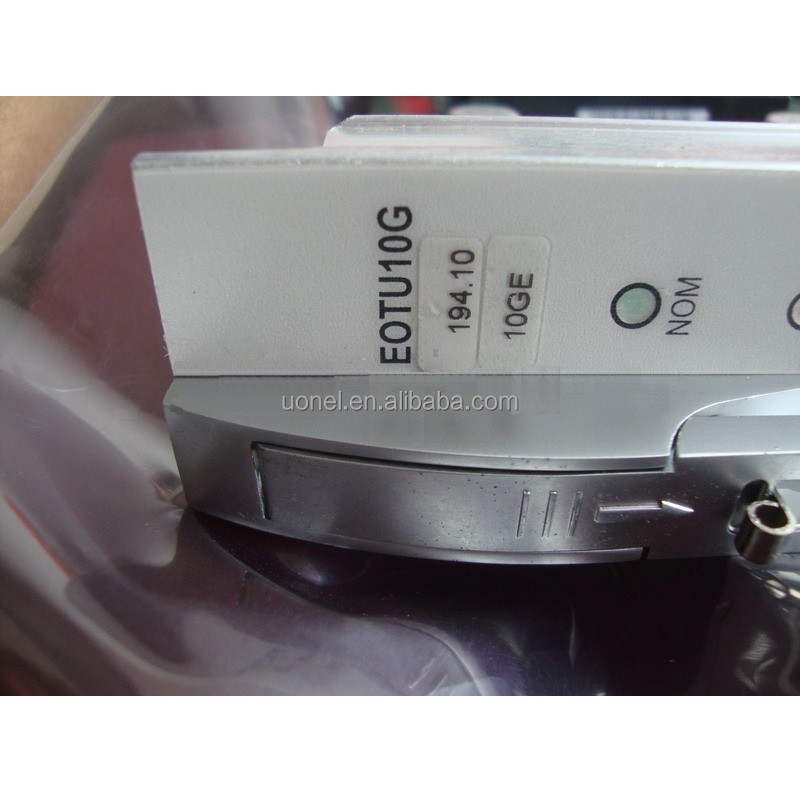

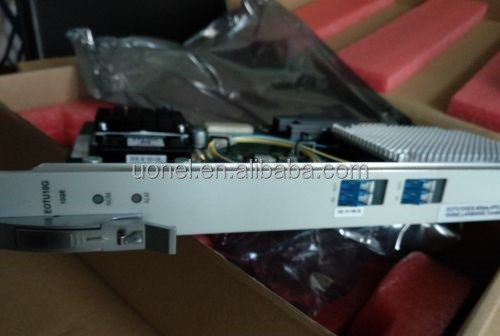

| Number Name: | EOTU10G | Skype: | Poppylee7 |
|---|---|---|---|
| Port: | Shenzhen |
ZXONE 8300&8500 support large-capacity ODUk electrical cross connection and optical cross connection to dispatch different types and granules of services
Large-capacity ODUk electrical cross connection
ZXONE 8300&8500 support large-capacity electrical cross connection of 0.8T/1.6T/3.2T and enables non-blocking electrical cross connection of multi-granularity services, including ODU0/1/2/2e/3/flex. It can be deployed at aggregation/core nodes in the network.
O/E hybrid cross connection and intelligent dispatching
The optical layer supports 2~9-degree ROADM and N*M WSS. It can implement automatic E2E configuration of wavelengths.
It supports WASON control plane in optical and electrical layers.
PIC (photonic integrated circuit)
Single subrack supports service access, cross connection, MUX/DEMUX, optical amplification, and clock processing & transport. The PIC technology reduces power consumption and makes the network cost-effective.
Synchronization
The system supports out-band/in-band 1588V2 and SyncE clock transport.
Highly reliable system architecture
The system adopts redundant 1+1 hot-standby for main control, power supply and clock units.
The cross connection unit uses advanced cubic protection, which is higher than common 1+1 protection by three orders of magnitude. It greatly improves the security of the equipment.
Reliable carrier-class protection
The system supports fiber-level, λ-level, sub-λ-level and L2 protection modes:
Fiber-level: line 1+1 protection, optical multiplex section 1+1 protection
λ-level: optical channel 1+1 protection
Sub-λ-level: ODUk 1+1 protection
L2: ESR protection
System Specification
| Function and Parameters | ZXONE 8200 | ZXONE8300 | ZXONE8500 |
| Power Supply | -48DC(-60V~40V) | ||
| Maximum Power Consumption | 1704W(40x10G) | 3318W(80x10G) | 4830(160x10G) |
| Dimensions(H*W*D) | 447 mm x 535 mm x 275 mm | 897 mm x 535 mm x 275 mm | 1425 mm x 535 mm x 275 mm |
| Weight | 15kg | 26kg | 37kg |
| Trans Dimensions(H*W*D) | 422 mm x 533mm x 286 mm | ||
| Trans Weight | 12.5kg | ||
| Fixed Interface | 23 | 46 | 69 |
| Admission | STM-N,POS,ATM,GE ,10GE,FC,ESCON,FICON,DVB | ||
| transmittability | 10G-5000KMZ(300KM),40G-2000KM | ||
| intersect | WSS.-2~10 ROADM,ODUO/1/1/3,800G/1.6T/3.2T | ||
| Working Temperature | Long term working temperature: 0 ℃ ~+45 ℃ | ||
| Short term working Temperature: -5 ℃ ~+50 ℃ | |||
| Humidity | Long term working Humidity10%~90% | ||
| Short term working Humidity5%~95% | |||
| MTBF/MTTR | >235002 hours/ < 30 minutes | ||
