Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXMP M8300 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Number Name: | ZXONE 8300 | Type: | OTN |
|---|---|---|---|
| Warranty: | 1 Year | Port: | Shenzhen |

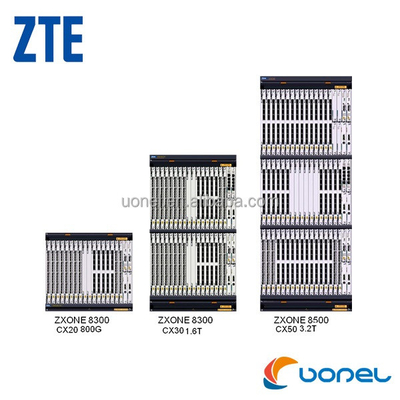

ZXONE 8300&8500 support large-capacity ODUk electrical cross connection and optical cross connection to dispatch different types and granules of services
CQ2/LQ2 8300 8700 Lo2 LQ2 LS2 LD2 CQ2 M4XCA PWD CCP
CX30e-21

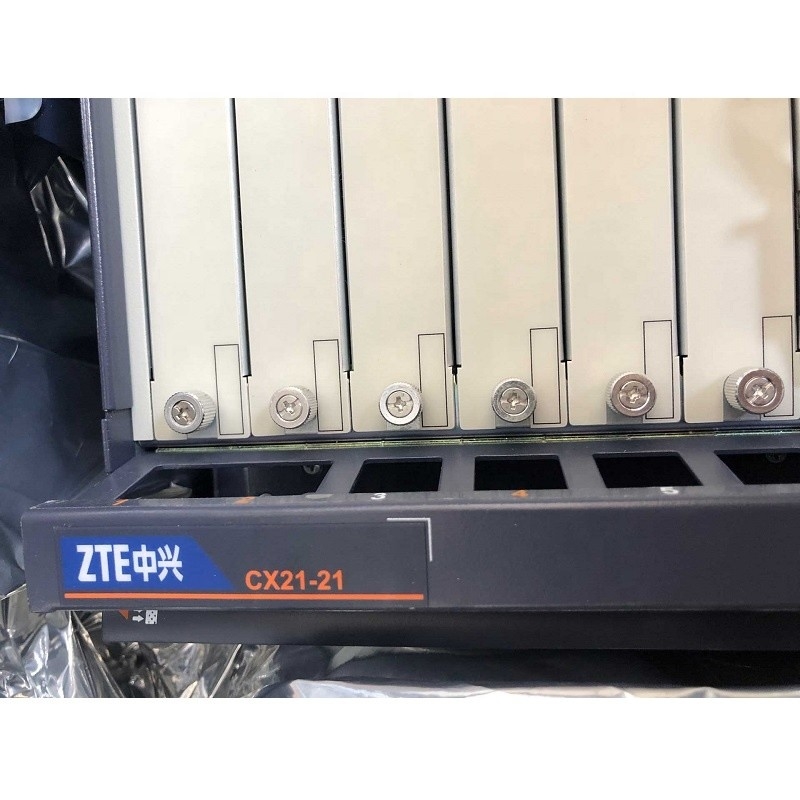

CX21-21

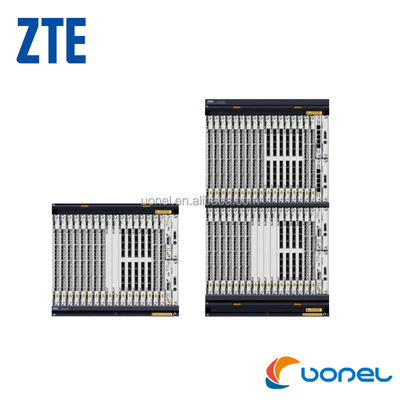

ZTE ZXONE 8300 OTN SHELF
N2M4XCA N4M4XCA ZTE ZXONE 8300 8700/9700 OTN
CHASSIS ZXONE8300 N2M1EOPM8 EOPM8 50G
CHASSIS ZXONE8300 N2M1EOWM2 EOWM2
ZXONE OTN8300/8500/8700Q
SPWA 080602 ZXONE 8300
N2M2CLK N4M2CLK N5M2CLK ZTE ZXONE 8300/8700/9700 OTN
N2M2CCP ZTE ZXONE 8300/8700/9700 OTN
MC-C-M4LQ2(N-XFP,FBB3,OTU2e) ZTE ZXONE M800/M820/8300
SEIA2 ZXONE 8300
SEIA1
N2M2PWD ZTE ZXONE 8300 8700/9700 OTN
N3M1C2Kx4(N-XFP)ZTE ZXONE 8700/9700 OTN
EONAS3120
M820 M920 ZXONE 8700/9700 OTN N4M1EOPM4(50G,C,LC,C)
N2M4XCA ZXONE 8300 8700/9700 OTN N2M4XCA XCA
N4M2SNP ZTE ZXONE 8700 ZXONE 9700 SNP Main control board
N4M2ODU40 C+ ZTE ZXONE 8700/9700 OTN
MC-C-EOTU10G ZTE ZXONE 8700/9700 OTN 10
N2M3CQ2(N-XFP,10G) ZXONE8700 8500 CQ2
DSAE ZTE M720 M8800 M8820 M920 ZXONE 8700/9700 OTN
N4M2OCI OCIB ZTE ZXONE8700/9700 OTN IV
N2M2LS3 ZTE LS3 ZXONE8500 8700 9700 OTN40G
N4M3CQ2(N-XFP,10G any,f) ZTE ZXONE 8700/9700 OTN 10G
ZTE ZXONE 9700-Main N5M2EONA C 2520,N IV
ZXONE 9700 S3 N5M1PSK PSK CCPK N5M1CCPK(1 SFP)
OTN8700 nx41 cx51 eona lo2 ls4 lq2 co2 cq2 ch1
9700 8700 8500 8300 M721 8700 9700 8300 S385 S330 8700
9700 8300 M721 CSF OL64×2 OL64 OL16×4 ENCP ANCP
TGSA×8 RSEB M3LO2 M3LO2 MQA2 OBA SED SEE
Large-capacity ODUk electrical cross connection
ZXONE 8300&8500 support large-capacity electrical cross connection of 0.8T/1.6T/3.2T and enables non-blocking electrical cross connection of multi-granularity services, including ODU0/1/2/2e/3/flex. It can be deployed at aggregation/core nodes in the network.
O/E hybrid cross connection and intelligent dispatching
The optical layer supports 2~9-degree ROADM and N*M WSS. It can implement automatic E2E configuration of wavelengths.
It supports WASON control plane in optical and electrical layers.
PIC (photonic integrated circuit)
Single subrack supports service access, cross connection, MUX/DEMUX, optical amplification, and clock processing & transport. The PIC technology reduces power consumption and makes the network cost-effective.
Synchronization
The system supports out-band/in-band 1588V2 and SyncE clock transport.
Highly reliable system architecture
The system adopts redundant 1+1 hot-standby for main control, power supply and clock units.
The cross connection unit uses advanced cubic protection, which is higher than common 1+1 protection by three orders of magnitude. It greatly improves the security of the equipment.
Reliable carrier-class protection
The system supports fiber-level, λ-level, sub-λ-level and L2 protection modes:
Fiber-level: line 1+1 protection, optical multiplex section 1+1 protection
λ-level: optical channel 1+1 protection
Sub-λ-level: ODUk 1+1 protection
L2: ESR protection
System Specification
| Function and Parameters | ZXONE 8200 | ZXONE8300 | ZXONE8500 |
| Power Supply | -48DC(-60V~40V) | ||
| Maximum Power Consumption | 1704W(40x10G) | 3318W(80x10G) | 4830(160x10G) |
| Dimensions(H*W*D) | 447 mm x 535 mm x 275 mm | 897 mm x 535 mm x 275 mm | 1425 mm x 535 mm x 275 mm |
| Weight | 15kg | 26kg | 37kg |
| Trans Dimensions(H*W*D) | 422 mm x 533mm x 286 mm | ||
| Trans Weight | 12.5kg | ||
| Fixed Interface | 23 | 46 | 69 |
| Admission | STM-N,POS,ATM,GE ,10GE,FC,ESCON,FICON,DVB | ||
| transmittability | 10G-5000KMZ(300KM),40G-2000KM | ||
| intersect | WSS.-2~10 ROADM,ODUO/1/1/3,800G/1.6T/3.2T | ||
| Working Temperature | Long term working temperature: 0 ℃ ~+45 ℃ | ||
| Short term working Temperature: -5 ℃ ~+50 ℃ | |||
| Humidity | Long term working Humidity10%~90% | ||
| Short term working Humidity5%~95% | |||
| MTBF/MTTR | >235002 hours/ < 30 minutes | ||
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
