Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXMP M720 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Number Name: | DCM120-5C | CWDM Configuration: | 18 * 2.5G |
|---|---|---|---|
| Single-shelf Height: | 6U | DWDM Configuration: | 40 * 10G |
| Port: | Shenzhen |

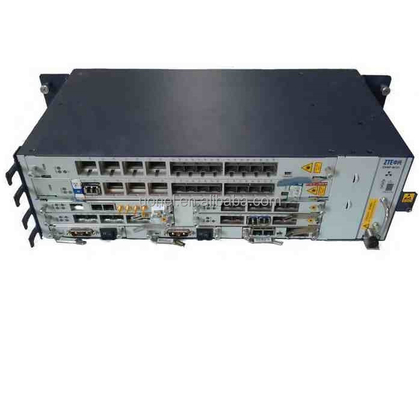

ZXMP M721 is one of products for Metro Edge iOTN solution. It features smart stature, big capability, low power consumption and high reliability.
The ZXMP M721 Metro Edge OTN Equipment offers the following switch products:
High integration

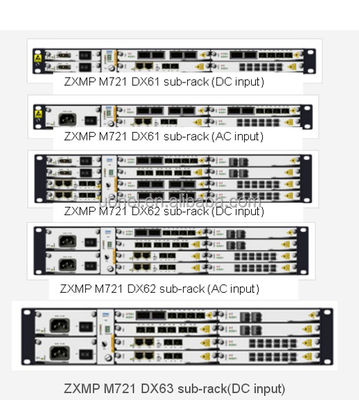

ZXMP M721 sub-racks are only 1RU, 2RU and 3RU high,providing 8 slots (DX62, 2RU DC input), 6 slots (DX62, 2RU AC input), 3 slots (DX61,1RU), and 6 slots (DX63, 3RU), resulting in space saving, power consumption reduction and operation &maintenance expense decreasing.
Powerful transmission performance
ZXMP M721 supports 40×10G DWDM system, 18×2.5G or 10×2.5G+8×10G CWDM system, and both systems support smooth upgrade.
DWDM system supports multi-span transmission without OEO electrical relay (18×22dB, 7×30dB, 1×45dB etc.). CWDM 2.5G system supports 28dB transmission, target distance of CWDM 10G system is 70KM.
Diversity access service type
ZXMP M721 can access any-rate-service (100Mbit/s~7.5Gbit/s),and the port supports automatic identification of service types,eliminating the needs to configure manually via NMs.
SDH service: STM-1/4/16/64, OC-3/12/48/192, POS, E1/T1.
Ethernet service: FE, GE, 10GE, 100GE;
Storage and video streaming service: 1G/2G/4G/8G/10G FC, ESCON, FICON, Infiniband 10G, DVB-ASI, SD-SDI/HDSDI/
3G-SDI;
CPRI: OPTION 2/3/4/5/6/7;
OTN: OTU1, OTU2, OTU2e, OTU1f.
Flexible service grooming
M721 supports DSS (Distributed Service Switch platform) based on ODU0/ODU1/flex.
Services aggregation: 4-10×Any-rate-service→OTU1, 4-22×Any-rate-service→OTU2.
10G-any services convert to OTU2, support single channel, double channels, and integrated protection OTU cards.
Reliable protection scheme
ZXMP M721 supports control card/power card 1+1 backup and OMS/OCH 1+1 and ODUk 1+1 protection. All the protection switching time of OMS 1+1, OCH 1+1 and ODUk 1+1 are less than 50ms in compliance with ITU-T standards.
Time Synchronization
ZXMP M721 supports 1588V2 time synchronization and Sync E.
Optional OSC/ESC
ZXMP M721 supports OSC (optical supervision channel) and ESC (electrical supervision channel) providing flexibility for deployment.
| Rack dimension | 2000/2200mm (H) × 600mm (W) × 300mm (D) |
| Sub-rack dimensions | 1RU: 442mm (W) × 45mm (H) × 238mm (D) 2RU: 442mm (W) × 89mm (H) × 238mm (D) 3RU: 442mm (W) × 134mm (H) × 238mm (D) |
| Power supply | -48V or -60V DC (-72V~-40V) 110V or 220V AC (100V~240V) 240V or 336V HVDC (192V~400V) |
| Installation mode | ETS/IEC standard rack installation, hanging installation |
| Typical equipment power consumption | Single sub-rack(3RU): < 310W Single sub-rack(2RU DC input): < 280W Single sub-rack(2RU AC input): < 250W Single sub-rack(1RU): < 140W |
| Environmental parameter | Working temperature: 0℃~45℃ Working humidity: 10%~90% Storage temperature: -40℃~70℃ |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
