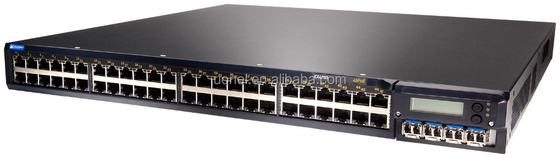

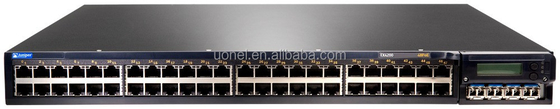

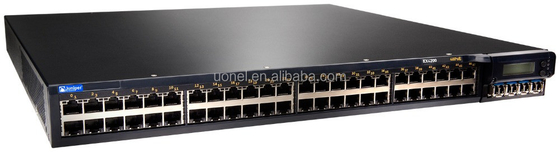

juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable

juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable

  • juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
  • juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
  • juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
  • juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
  • juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
  • juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
juniper EX4200-24T,EX 4200, 24-port 10/100/1000BaseT (8-ports PoE) + 320W AC PS, includes 50cm VC cable
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
With Modem Function: Yes Standards And Protocols: Wi-Fi 802.11g
Encryption Type: WPA2-PSK Products Status: New, Stock
Type: Routers Application: ENTERPRISE
Function: Router, Router LAN Ports: 8
WAN Ports: 2 Color: Black
Port: ShenZhen Or HongKong

EX4200 Overview

The EX4200 Ethernet Switch is a compact, fixed-configuration solution that deploys easily in campus installations, as well as in 1 Gigabit Ethernet (1GbE) access environments in the data center. EX4200 brings flexible, scalable, high-performance switching to campuses and data center top-of-rack deployments, combining the availability and reliability of modular solutions with the flexibility of stackable switches.

Juniper's Virtual Chassis technology can be used to connect up to 10 EX4200 switches as a single logical device, delivering a scalable solution perfect for growing campus installations. The EX4200 can also be combined with EX4500 and EX4550 Switches in the same Virtual Chassis to support mixed 1GbE and 10GbE environments.

The EX4200 switches support 10/100/1000BASE-T with both 24- and 48-port configurations, and they optionally include full or partial IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+. A 24-port 100BASE-FX/1000BASE-X SFP-based fiber configuration is available for gigabit aggregation in long-distance deployments. Available uplinks include 4-port 1GbE or 2-port 10GbE copper or fiber configurations, with and without Media Access Control Security (MACsec) capabilities.



Form factor
Fixed platform
Virtual Chassis configuration consisting of 10 switches
Access ports
N/A
Dimensions (W x H x D)
17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm)
1 rack unit
Backplane speed
128 Gbps
Data rate
EX4200-24P/24T/24F: 88 Gbps
EX4200-48P/48T: 136 Gbps
Throughput
EX4200-24P/24T/24F: 65 Mpps (wire speed)
EX4200-48P/48T: 101 Mpps (wire speed)
10/100/1000BASE-T port densities
N/A
10GBASE-X port densities
N/A
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities
N/A
100GBASE C form-factor pluggable transceiver (CFP) port densities
N/A
Resiliency
Internal, hot-swappable redundant power supply; field-replaceable fan tray with three fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration
Operating system
Junos OS
Traffic monitoring
sFlow
Quality-of-service (QoS) queues/port
8
MAC addresses
32,000
Jumbo frames
9216 bytes
IPv4 unicast/multicast routes
16,000/8000
IPv6 unicast/multicast routes
4000/2000
Number of VLANs
4096
ARP entries
16,000

Innovative Design

Innovative, cost-effective switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.


Virtual Chassis

With Virtual Chassis technology, up to four interconnected EX2300 switches operate as a single logical device, reducing operational expenses and simplifying management.


Eight QoS Queues

Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.


Always-On Reliability

Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver always-on reliability for every application.



Centralized Management with Junos Fusion

When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX2300 switches can be managed from a single interface.



High Port Densities and Wire-Speed Performance

High 1GbE and 10GbE port densities and wire-speed performance provide flexibility when creating network topologies.
