juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches

juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches

  • juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
  • juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
  • juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
  • juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
  • juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
  • juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
juniper QFX10002 Ethernet Switches Fixed-configuration data center spine and core switches, powered by custom,Juniper switches
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: QFX10002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Products Status: Stock Type: Routers
Application: ENTERPRISE Function: Router, Router
LAN Ports: 8 WAN Ports: 2
Color: Black Port: ShenZhen Or HongKong

Overview

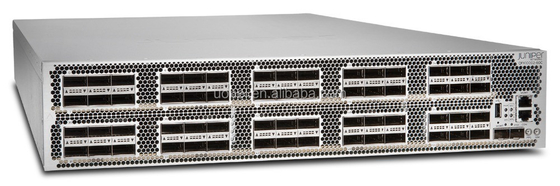

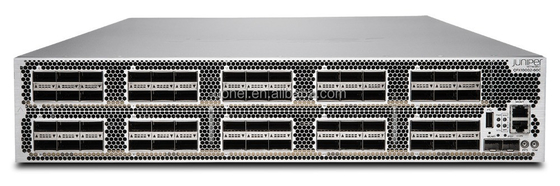

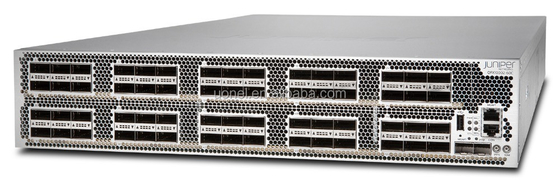

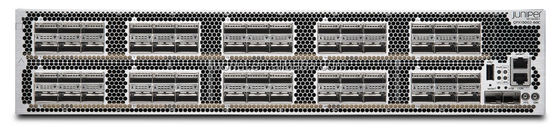

The QFX10002 line of fixed Ethernet switches offers highly scalable, high-density platforms and provides a robust foundation for supporting today’s most demanding data center environments—all in a compact, 2 U form factor.

Using custom silicon Juniper Q5 ASICs, QFX10002 data center switches come in three models:

  • QFX10002-36Q: 2 U 36x40GbE or 12x100GbE ports with throughput of up to 2.88 Tbps. Ideally suited for data center spine and core deployments.
  • QFX10002-72Q: 2 U 72x40GbE or 24x100GbE ports with throughput of up to 5.76 Tbps. Ideally suited for data center spine and core deployments.
  • QFX10002-60C: 2 U 60x100GbE ports with throughput of up to 6 Tbps. Ideally suited for data center spine, data center edge, and Data Center Interconnect (DCI) deployments.

The QFX10002 features a deep buffer with Hybrid Memory Cube (HMC) to absorb network traffic spikes, eliminating dropped micro-bursts of traffic and application latency caused by shallow-buffer switches. QFX10002 switches accommodate big data applications and storage nodes that demand packet resiliency from the network, along with container workloads that increase network utilization.

QFX10002 switches provide up to 2 million forwarding information base (FIB) entries and up to 2 million host routes, delivering the capacity you need as your data center requirements grow and change.

Additionally, QFX10002 fixed-configuration switches offer investment protection by supporting 10GbE, 40GbE, and 100GbE in the same platform, giving you the power to seamlessly transition with evolving demands.

Dimensions (W x H x D)
17.4 x 3.5 x 31 in (44.2 x 8.9 x 78.7 cm); 2U
Power options
100 to 240 VAC (single phase) at 50/60 Hz or -40 to -72 VDC
System throughput
QFX10002-36Q: 2.88 Tbps
QFX10002-72Q: 5.76 Tbps
Form factor
Fixed-configuration platforms
Data rate
QFX10002-72Q: Up to 2 Bpps
QFX10002-36Q: Up to 1 Bpps
Port densities
QFX10002-72Q: 288 10GbE, 72 40GbE, or 24 100GbE
QFX10002-36Q: 144 10GbE, 36 40GbE, or 12 100GbE
Maximum 10GbE density
QFX10002-72Q: 288
QFX10002-36Q: 144
Maximum 25GbE/50GbE densities
N/A
Maximum 40GbE density
QFX10002-72Q: 72
QFX10002-36Q: 36
Maximum 100GbE density
QFX10002-72Q: 24
QFX10002-36Q: 12
Resiliency

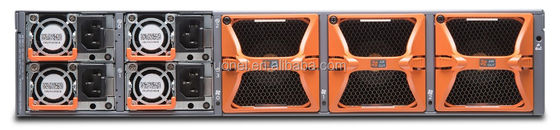

QFX10002-36Q/-72Q: 2/4 hot-swappable AC/DC power supplies; 3 hot-swappable fan trays
Power consumption
QFX10002-72Q: 1050 W Typical / 1425 W Maximum (AC, DC)
QFX10002-36Q: 560 W Typical / 800 W Maximum (AC, DC)
Overlay services
VMware NSX L2/3 gateway
Juniper Contrail L2/3 gateway
Traffic monitoring
Port-based
LAG port
VLAN-based
ACL-based
Mirror to local and remote destinations (L2 over VLAN and GRE)
QoS queues/port
Eight output queues per port
MAC addresses
QFX10002-36Q: Up to 256,000
QFX10002-72Q: Up to 512,000
Jumbo frames
9216 bytes
IPv4 hosts
Up to 2,000,000
IPv4 unicast routes
256,000
IPv4 multicast routes
Up to 128,000
IPv6 hosts
Up to 2,000,000
IPv6 unicast routes
256,000
IPv6 multicast routes
Up to 128,000
Number of VLANs
16,000
ARP entries
QFX10002-36Q: Up to 144,000
QFX10002-72Q: Up to 256,000


High-Performance Throughput

Throughput of up to 2.56 Tbps sustains wire-speed switching with low latency and jitter, as well as full Layer 2 and Layer 3 performance.



Redundant Power and Cooling

Dual hot-swappable AC or DC power supplies provide 1+1 redundancy, while five hot-swappable fan trays maintain high system availability.



Separate Control and Data Planes

Keeping the control and data planes independent maximizes system availability and throughput.



Server and Network Virtualization

A software-programmable infrastructure lets you make the most of your network resources and quickly adapt to changing needs.



Unified In-Service Software Upgrades (ISSU)

Network administrators make software upgrades in minutes with no downtime, which means no lost user productivity.
