S5720-HI Series for Switches S5720-32C-HI-24S-AC S5720-32C-HI-24S S5720-32C-HI S5720-32C

S5720-HI Series for Switches S5720-32C-HI-24S-AC S5720-32C-HI-24S S5720-32C-HI S5720-32C

  • S5720-HI Series for Switches S5720-32C-HI-24S-AC  S5720-32C-HI-24S  S5720-32C-HI S5720-32C
S5720-HI Series for Switches S5720-32C-HI-24S-AC  S5720-32C-HI-24S  S5720-32C-HI S5720-32C
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: S5720-32C-HI-24S-AC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Products Status: Stock Ports: 24
Transmission Rate: 10/100/1000Mbps Function: LACP, POE, QoS, SNMP, VLAN Support
Communication Mode: Full-Duplex & Half-Duplex Switch Capacity: 128Gbps

S5720-HI Series for Switches S5720-32C-HI-24S-AC  S5720-32C-HI-24S  S5720-32C-HI S5720-32C 0



S5720-HI Series for Switches S5720-32C-HI-24S-AC  S5720-32C-HI-24S  S5720-32C-HI S5720-32C

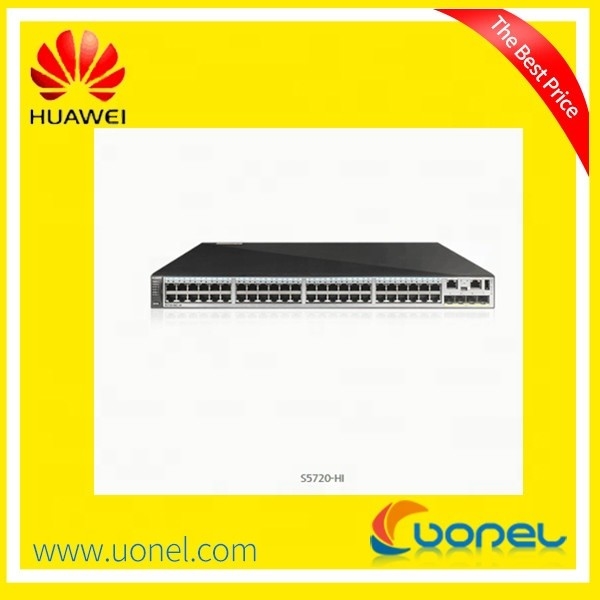

S5720-HI Series Agile Fixed Switches

S5720-HI series switches are IDN-ready fixed switches developed by. The S5720-HI provides native AC capabilities and can manage 1K APs. It provides the free mobility function to ensure consistent user experience, and is VXLAN capable to implement network virtualization. The S5720-HI provides built-in security probes and supports abnormal traffic detection, Encrypted Communication Analytics (ECA), and network-wide threat deception.

The S5720-HI series switches can be used as core devices on enterprise branch networks and small- and medium-sized campus networks. They are also used as aggregation devices on large-sized campus networks. The switches help build highly reliable enterprise campus networks that are easy to expand and manage.

Specifications¹

Product model S5720-32C-HI-24S-AC S5720-56C-HI-AC S5720-56C-PWR-HI-AC
S5720-56C-PWR-HI-AC1
Switching Capacity 598 Gbit/s
Forwarding Performance 168 Mpps 192 Mpps 192 Mpps
Fixed Ports 24×Gig SFP, 8*Combo(10/100/1000BASE-T or 100/1000BASE-X),4×10 Gig SFP+ 48×10/100/1000Base-T, 4×10 Gig SFP+ 48×10/100/1000Base-T, 4×10 Gig SFP+
Extended Slots Two expansion slots (one is reserved for future use)
Wireless service AP access control, AP domain management, and AP configuration template management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, tag/terminal location, and spectrum analysis
iPCA Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio
Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
Super Virtual Fabric (SVF) Works as the parent node to vertically virtualize downlink switches and APs as one device for management.
A two-layer client architecture is supported.
Third-party devices are allowed between SVF parent and clients.
VxLAN Supports VXLAN L2 and L3 gateways
Centralized and distributed gateway
BGP-EVPN
Configured through the NETCONF protocol
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

For detailed interoperability certifications and test reports, click HERE.
