Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S5700-48TP-SI-DC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | ≥ 48 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

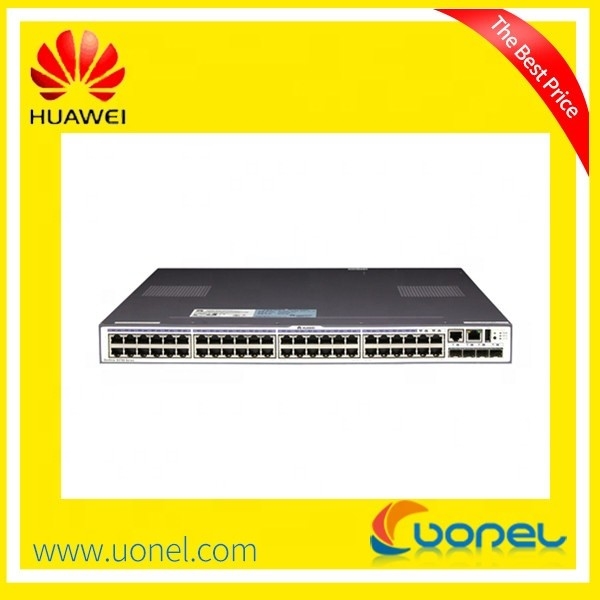

S5700-SI Series Standard Gigabit Switches S5700-48TP-SI-DC S5700-48TP-SI S5700-48TP
S5700-SI Series Standard Gigabit Switches — products
High-performance hardware tightly integrated with Versatile Routing Platform (VRP) software, in a highly scalable, energy-efficient Gbit/s access or aggregation switch.
Flexible networking options and intelligent iStack technology make the S5700-SI easily scalable, and simple to operate and maintain.
Comprehensive security features defend against DoS and user-targeted cyberattacks; dynamic policy provisioning simplifies user authentication, improving QoS performance.
| Specifications | S5700-26X-SI-12S-AC |
| Switching Capacity | 256 Gbit/s |
| Forwarding Performance | 66 Mpps |
| Fixed Ports | 12 x 10/100/1,000 BASE-T, 12 x 100/1,000 Base-X, 2 x 10 GE SFP+ |
| Extended Slots | The S5700TP provides a stacked extended slot |
| MAC Address Table | IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses 16K MAC |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
| Access Security | DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI |
| Management and Maintenance | Intelligent stacking (not supported by S5700-26X-SI-12S-AC) Virtual cable test Remote network monitoring (RMON) eSight and web-based NMS Auto-config and Easy Operation SNMP v1/v2c/v3 System logs and multi-level alarms |
| VLAN | 4K VLANs Guest VLAN and voice VLAN Super VLAN MUX VLAN GVRP 1:1 and N:1 VLAN mapping VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
| Ring Network Protection | STP, RSTP, and MSTP Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover RRPP ring topology and RRPP multi-instance G.8032 Ethernet Ring Protection Switching (ERPS) Smart Ethernet Protection (SEP) BPDU protection, root protection, and loop protection BPDU tunnel |
| Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 Enhanced Trunk (E-Trunk) DLDP LACP |
| IP Routing | Static route Layer 3 dynamic route |
