| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | LE0M00FBXB00 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | ≥ 48 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | / |
| Dimensions (H X W X D): | 126.6 Mm X 323.9 Mm X 74.8 Mm (5.0 In. X 12.8 In. X 2.9 In.) | Number Of Fans: | 2 |
| Weight: | 1140±20 G | Maximum Power Consumption: | 43 W |
| Maximum Wind Pressure: | 331 Pa | Maximum Airflow: | 163 Cubic Feet Per Minute (CFM) |
| Maximum Noise: | 62 DB(A) | Operating Voltage Range: | -38.4 V DC To -72 V DC |
| Port: | Shenzhen |

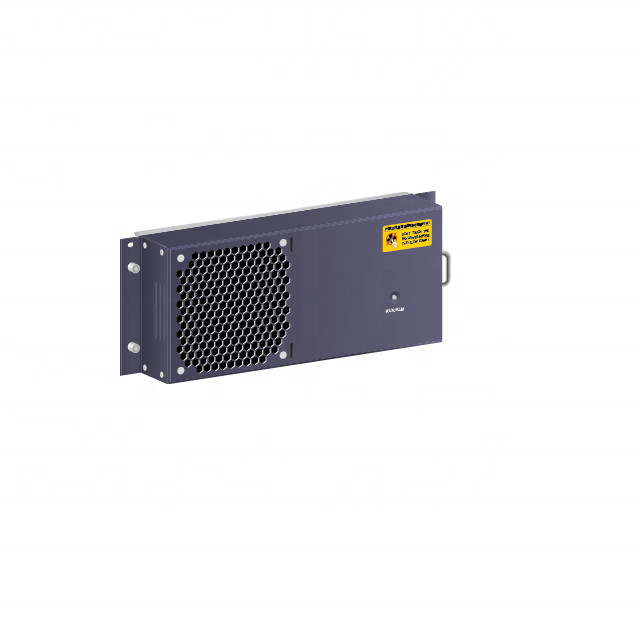

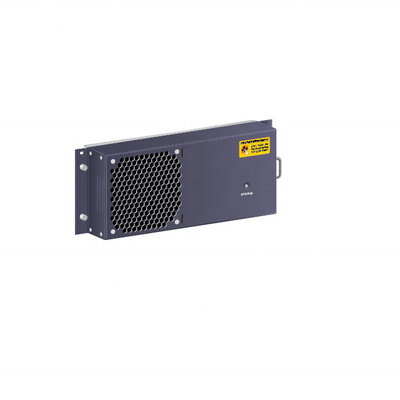

02120554 Huawei LE0M00FBXB00 Wide-voltage 68 fan box
LE0M00FBXB00 Fan Module
A fan module can be installed in:
Model | Name | S9303&S9306&S9312 |
|---|---|---|
LE0M00FBXB00 | Wide-voltage 68 fan box | Supported in V100R001C02 and later versions |
Function | Description |
|---|---|
Hot swapping | Supported Other fan modules are not affected when you install or remove a fan module. |
Intelligent fan speed adjustment | The S9303, S9306, and S9312 series switches provide intelligent fan speed adjustment based on temperature in each zone. The system monitors the temperature of key components, and adjusts the fan speed based on temperature changes. This intelligent fan speed adjustment function ensures that the system stays within the proper operating temperature range, and reduces power consumption and noise. |
Indicator | Color | Description |
|---|---|---|
RUN/ALM | Green | Slow blinking: The fan module is working properly, and the communication is normal. Fast blinking: The fan module is working properly, but communication has not been established. |
Red | Slow blinking: An alarm was generated. You must determine whether to replace the fan module, depending on the actual situation. Steady on: The fan module has a hardware failure and needs to be replaced. |
Item | Value |
|---|---|
Dimensions (H x W x D) | 126.6 mm x 323.9 mm x 74.8 mm (5.0 in. x 12.8 in. x 2.9 in.) |
Number of fans | 2 |
Weight | 1140±20 g |
Maximum power consumption | 43 W |
Maximum wind pressure | 331 Pa |
Maximum airflow | 163 cubic feet per minute (CFM) |
Maximum noise | 62 dB(A) |
Operating voltage range | -38.4 V DC to -72 V DC |
Environment specifications |
|
Part number | 02120554 |
