Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S5700-52P-PWR-LI-AC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

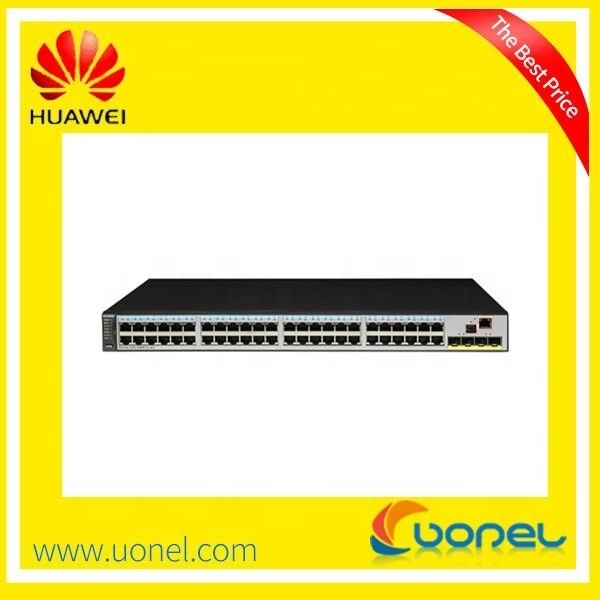

S5700-LI Series Simplified Gigabit Switches S5700-52P-PWR-LI-AC S5700-52P-PWR-LI S5700-52P-PWR S5700-52P
| Specifications | S5700(-X)-LI Series S5700-LI-CSFP S5701-X-LI Series | S5700S-LI Series | S5700-LI-BAT Series |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Forwarding Performance | S5700-10P-LI-AC: 15 Mpps S5700-10P-PWR-LI-AC: 15 Mpps S5700-28P-LI-AC: 42 Mpps S5700-28X-LI: 96 Mpps S5700-28TP-LI-AC: 42 Mpps S5700-28TP-PWR-LI-AC: 42 Mpps S5701-28X-LI-24S-AC: 96 Mpps S5701-28X-LI-AC: 96 Mpps S5701-28TP-PWR-LI-AC: 42 Mpps S5700-28P-PWR-LI-AC: 42 Mpps S5700-28X-PWR-LI-AC: 96 Mpps S5700-52P-LI-AC: 78 Mpps S5700-52X-LI-AC: 132 Mpps S5700-52X-PWR-LI-AC: 132 Mpps S5700-52P-PWR-LI-AC: 78 Mpps S5700-28X-LI-24S: 96 Mpps S5700-52X-LI-48CS-AC: 132 Mpps | S5700S-28P-LI-AC: 42 Mpps S5700S-52P-LI-AC: 78 Mpps | 42 Mpps |
| MAC Address Table | 16K | ||
| VLAN | 4K | ||
| Ring Network Protection | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover Smart Ethernet Protection (SEP) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel | ||
| IP Routing | Static route, RIP, RIPng (excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC) | ||
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics | ||
| Security | Hierarchical user management and password protection AAA authentication Limit on the number of learned MAC addresses NAC DHCP relay, DHCP server, DHCP snooping, DHCP security, and DHCP SAVI Port isolation, port security, and sticky MAC MFF | ||
| Surge Protection | Surge protection capability of service ports: 6 kV | ||
| Interoperability | VBST (Compatible with PVST/PVST+/RPVST) LNP (Similar to DTP) VCMP (Similar to VTP) For detailed interoperability certifications and test reports, click HERE. | ||
