Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S5710-108C-PWR-HI |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |
| Port: | Shenzhen |

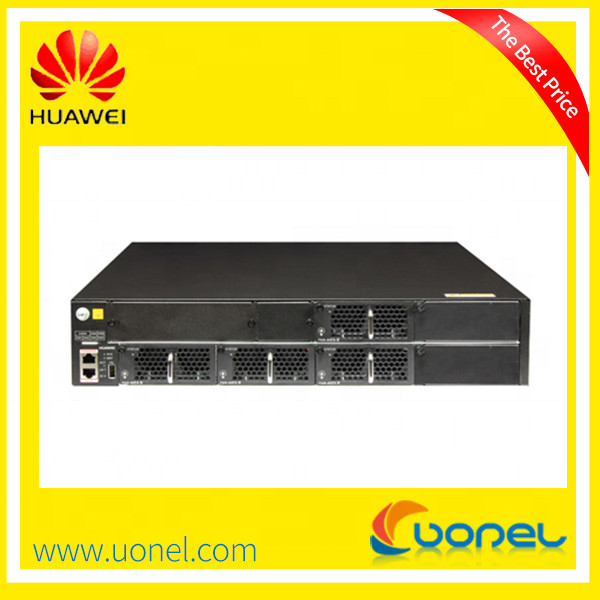

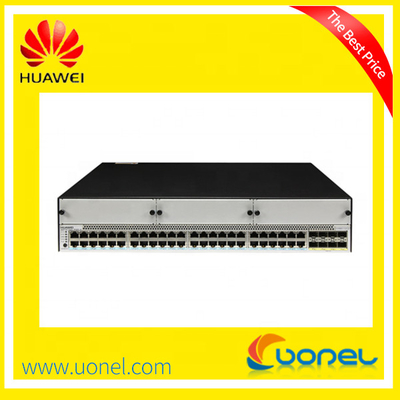

S5700-HI Series Advanced Gigabit Switches S5710-108C-PWR-HI S5710-108C-PWR S5710-108C
S5700-HI Series Advanced Gigabit Enterprise Switches — products
Highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers. 40 Gbit/s upstream ports configurable to 10 Gbit/s for flexible networking.
Advanced hardware design and Versatile Routing Platform (VRP) software provide resilient, manageable operation; comprehensive onboard security features protect against cyber attacks.
S5700-HI models support Energy Efficient Ethernet (EEE), port energy detection, and device hibernation technologies, greatly reducing energy consumption and noise without compromising performance and stability.
| Specifications | S5700-28C-HI | S5700-28C-HI-24S | S5710-108C-PWR-HI |
| Switching Capacity | 256 Gbit/s | 1,024 Gbit/s | |
| Forwarding Performance | 96 Mpps | 504 Mpps | |
| Fixed Ports | 24 × 10/100/1,000 Base-T | 24 × 100/1,000 Base-X | 48 x 10/100/1,000 Base-T, and 8 x 10 GE SFP+ |
| Extended Slots | One extended slot: Optional subcard 1: 2×10GE SFP+ Optional subcard 2: 4×10GE SFP+ Optional subcard 3: 4×1000BASE-X | Three front extended slots: Optional subcard 1: 16 x 10/100/1,000 BASE-T Optional subcard 2: 16 x 1,000 BASE-X One rear extended slot: Optional subcard 1: 4 x 10 GE SFP+ (no GE auto adaption) Optional subcard 2: 4 x 40 GE QSFP+ | |
| MAC Address Table | 32K | 456K | |
| Ring Network Protection | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection | ||
| IP Routing | Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy | ||
| MPLS | MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS | ||
| OAM | Hardware OAM: EFM OAM CFM OAM Y.1731 performance test (hardware-level delay and jitter detection) | Software OAM: EFM OAM CFM OAM Y.1731 performance test | |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE. | ||
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed product: 1 Year
The Support Contacts:
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
