Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S5720-16X-PWH-LI-AC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | 24 |
|---|---|---|---|
| Transmission Rate: | 10/100/1000Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 128Gbps |

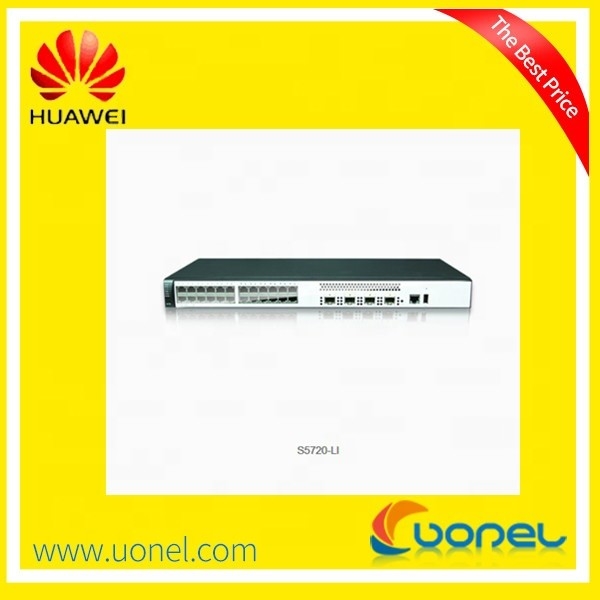

S5720-LI Series Simplified Gigabit Ethernet Switches S5720-16X-PWH-LI-AC S5720-16X-PWH-LI S5720-16X-PWH S5720-16X
S5720-LI Series Switches
The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports.
Building on high-performance hardware, store-and-forward mode, and Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.
| Model | S5720-12TP-LI-AC S5720-12TP-PWR-LI-AC | S5720-16X-PWH-LI-AC S5720-28X-PWH-LI-AC | S5720-28P-LI-AC S5720-28P-PWR-LI-AC S5720-28TP-LI-AC S5720-28TP-PWR-LI-AC S5720-28TP-PWR-LI-ACL | S5720-28X-LI-AC(DC) S5720-28X-PWR-LI-AC S5720-28X-LI-24S-AC(DC) S5720-28X-PWR-LI-ACF | S5720-52P-LI-AC S5720-52P-PWR-LI-AC | S5720-52X-LI-AC(DC) S5720-52X-PWR-LI-AC S5720-52X-LI-48S-AC S5720-52X-PWR-LI-ACF |
| Switching Capacity | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s | 336 Gbit/s |
| Forwarding Performance | 22.5 Mpps | 16x: 51 Mpps 28x: 126 Mpps | P series: 51 Mpps/108 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. TP series: 46.5 Mpps | 108 Mpps | 87 Mpps/144 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. | 144 Mpps |
| Fixed Ports | 8 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose | 16x model: 12 x Ethernet 10/100/1,000 Base-T ports, 2 x Ethernet 10/100/1,000 Base-T ports, and 2 x 10 Gig SFP+ ports 28x model: 16 x Ethernet 10/100/1,000 Base-T ports, 8 x Ethernet 100/1,000/2,500 Base-T ports, and 4 x 10 Gig SFP+ ports | P series: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports TP series: 24 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP ports | S5720-28X-LI-24S-AC(DC): 24 x Gig SFP ports, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP ports, 4 x 10 Gig SFP+ ports Others: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports | 48 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports | S5720-52X-LI-48S-AC: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+ Others: 48 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports |
| MAC Address Table | 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses | |||||
| VLAN | 4094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLANBasic QinQ and selective QinQ | |||||
| IP Routing | Static routing, RIP, RIPng, OSPF, and OSPFv3 | |||||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, please click HERE. | |||||
