ES5D21X04S01 (4-Port 10 GE SFP+ Rear Interface Card)
Version Mapping Table 1 lists the mapping between the card and software versions.
Card Model | Software Version |
ES5D21X04S01 | S5700: V200R006C00 and later versions S6700: V200R011C10 and later versions |
Card Overview
The ES5D21X04S01 provides four 10GE SFP+ optical ports for data access and line-rate switching.
The ES5D21X04S01 can be installed in rear card slot 2 of the S5720-H and S6720-C-SI..
Table 2 Applicable switch models
Card | Switch Model |
ES5D21X04S01 | S5720-32C-HI-24S-AC S5720-56C-HI-AC S5720-56C-PWR-HI-AC S5720-56C-PWR-HI-AC1 S6720-32C-SI-AC S6720-32C-SI-DC S6720-32C-PWH-SI-AC S6720-32C-PWH-SI S6720-56C-PWH-SI-AC S6720-56C-PWH-SI |

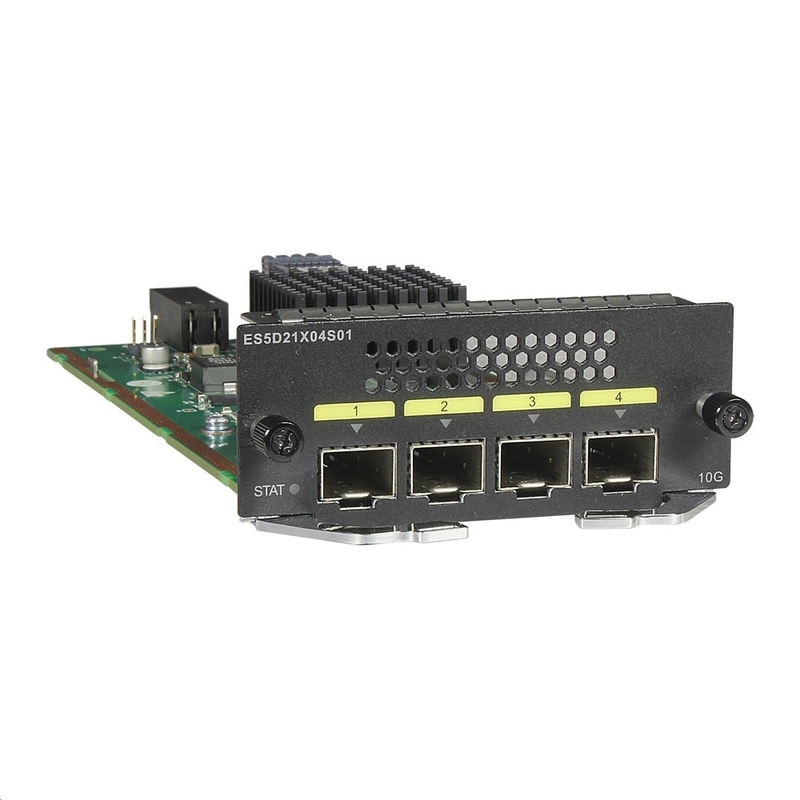

Figure 1 ES5D21X04S01
Figure 2 Indicators on the ES5D21X04S01 Table 4 Description of indicators
Number | Indicator | Color | Description |
1 | STAT | Off | The system software is not running. |
Green | Fast blinking: The system is starting. Slow blinking: The system is running properly. | ||
Red | A fault that affects services has occurred. The fault cannot be rectified automatically and requires manual intervention. | ||
2 | ACT/LINK | Green | Steady on: A link is established on the port. Blinking: The port is transmitting or receiving data. |
Off | No link is established on the port. |
Figure 3 Ports on the ES5D21X04S01 10GE SFP+ optical port
The card provides four 10GE SFP+ optical ports to transmit and receive service data at 1 or 10 Gbit/s. Table 5 lists the attributes of a 10GE SFP+ optical port.
NOTE: When the card is installed on the S5720-HI, the four 10GE SFP+ optical ports support only 10GE SFP+ optical modules, SFP+ cables, and AOC cables.
When the card is installed on the S6720-C-SI, the four 10GE SFP+ optical ports support GE optical modules, GE copper modules, 10GE SFP+ optical modules, SFP+ cables, and AOC cables.
Table 6 Technical specifications
Item | Description |
Physical specifications | Dimensions (W x D x H): 100 mm x 208 mm x 40 mm (3.9 in. x 8.2 in. x 1.6 in.) Weight: 0.76 kg (1.68 lb) Maximum power consumption: 9.95 W |
Environment parameters | Operating temperature: 0°C to 45°C (32°F to 113°F) Relative humidity: 5% RH to 95% RH Storage temperature: -40°C to +70°C (-40°F to +158°F) |
Table 7 provides ordering information of the card.
Card Description | Card Name | Part number |
4-port 10 GE SFP+ rear interface card | ES5D21X04S01 | 03022MDR |
