Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S2700-9TP-EI-AC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | ≤ 8 |
|---|---|---|---|
| Transmission Rate: | 10/100Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 32Gbps |
| Product Name: | S2700-9TP-EI-AC | Port: | Shenzhen |
UONEL CO LIMITED
Contact person:Natasha
Mobile/Whatsapp/Skype/Wechat:+86 13798264392
Website:www.uonel.com
www.uonel-telecom.com
Huawei S2700-9TP-EI-AC is a switch that supports 8 Ethernet 10/100 ports, one dual-purpose 10/100/1000 or SFP, AC 110/220V. It’s one of the S2700 Series Enterprise Switches that deliver Standard (SI) and Enhanced (EI) models with Huawei’s exclusive Easy Operation Toolkit for easy installation, configuration, monitoring, and trouble shooting. This switch is an Enhanced model.
Figure 1 shows the appearance of Huawei S2700-9TP-EI-AC switch.
Table 1 shows the Quick Specs.
| Product Code | S2700-9TP-EI-AC |
| Downlink Ports | 8 x Ethernet 10/100 ports |
| Uplink Ports | 1 x dual-purpose 10/100/1000 or SFP |
| MAC Address | 8K MAC address entries |
| Forwarding Performance | 2.7 Mpps |
| Switching Capacity | 32 Gbit/s |
| Power | 100 V AC to 240 V AC, 50/60 Hz |
| Heat Dissipation | Fan-free natural heat dissipation |
| Dimensions (W x D x H) | 25 cm x 18 cm x 4.36 cm |

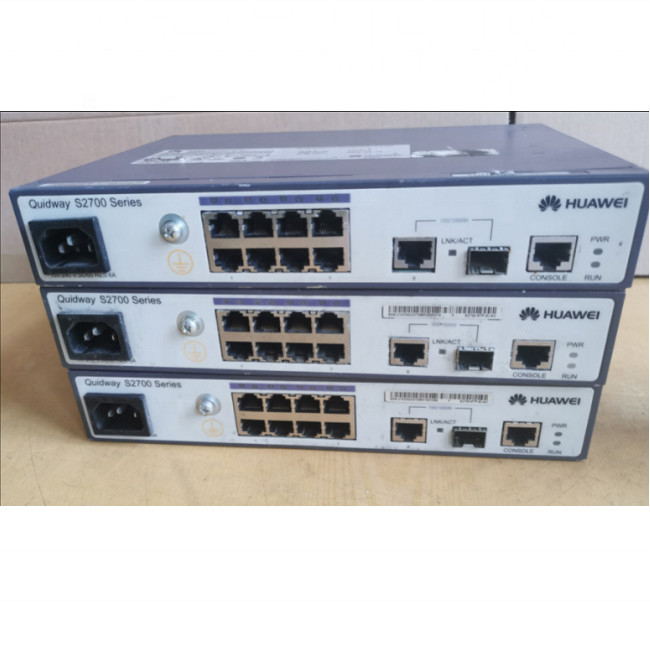

Figure 2 shows the front panel of Huawei S2700-9TP-EI-AC switch.
Note:
| 1 | AC socket | 4 | 1 x combo port (10/100/1000BASE-T + 100/1000BASE-X) |
| 2 | Ground Screw | 5 | 1 x console port |
| 3 | 8 x 10/100BASE-TX ports | ||
·Ground Screw is used with a ground cable.
·One Combo Port supports 10/100/1000BASE-T or 100/1000BASE-X port. FE/GE/GE-CWDM optical transceivers are applicable to the combo ports.
Figure 3 shows the back looking of Huawei S2700-9TP-EI-AC switch.
Table 2 shows the recommended optical transceivers.
| Model | Description |
| FE-SFP Optical Transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC) |
| GE-SFP Optical Transceiver | |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
Table 3 shows the comparison of Huawei S2700-9TP, 18TP and 26TP switch.
| Models | S2700-9TP-EI-AC | S2700-18TP-EI-AC | S2700-26TP-EI-AC |
| Downlink Ports | 8 x Ethernet 10/100 ports | 16 x Ethernet 10/100 ports | 24 x Ethernet 10/100 ports |
| Uplink Ports | 1 x dual-purpose 10/100/1,000 or SFP | 2 x dual-purpose 10/100/1,000 or SFP | 2 x dual-purpose 10/100/1,000 or SFP |
| Power Supply | AC | AC | AC |
| Models’ vesion | Enhanced | Enhanced | Enhanced |
