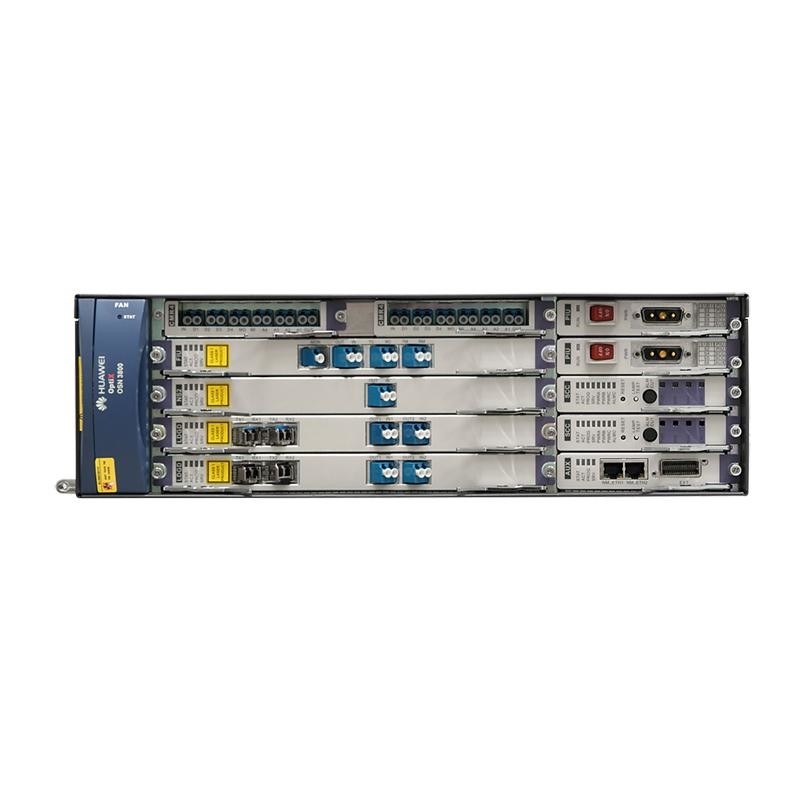

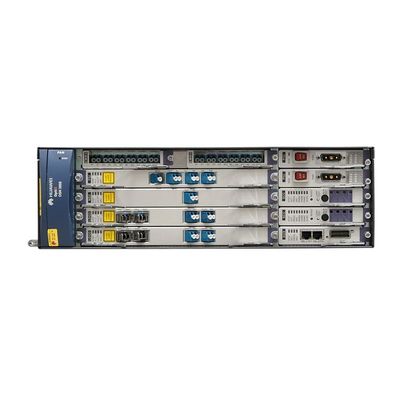

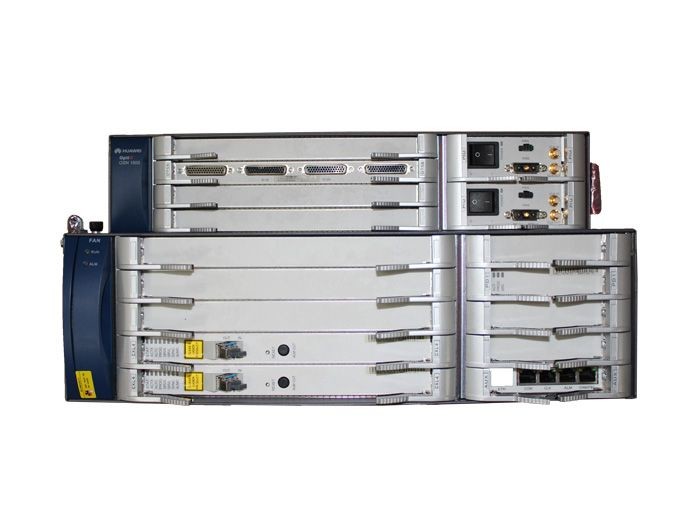

| Type: | Fiber Identifier | SSR1EFT4: | 4xFE Transparent Transmission Board |
|---|
EFT4 boards support the transparent transmission of Ethernet services, LCAS function, and test frames.
Table 1 lists the functions and features supported by EFT4 boards.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic functions | Transmits 4xFE services. | ||
| Port types | Supports 10BASE-T/100BASE-TX signals. Electrical ports comply with IEEE 802.3u. | ||

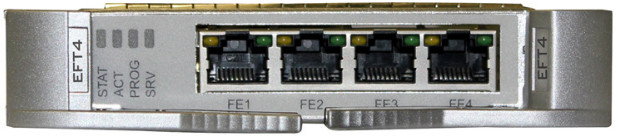

| Functions when being used with an interface board | Provides ports on the front panel to receive/transmit 4xFE signals. | ||
| Port characteristics | Working modes | 100M full-duplex, 10M full-duplex, auto-negotiation | |
| Traffic control mode at ports | Auto-negotiation mode | Not supported | |
| Non-autonegotiation mode | Supported | ||
| Query/Setting of port status | Supported | ||
| Query of port types | Supported | ||
| Setting of optical power thresholds | Not supported | ||
| Pluggable optical module | Not supported | ||
| Service categories | EPL service | Supports PORT-based transparent transmission. | |
| Service specifications | Formats of Ethernet data frames | IEEE 802.3 | Supported |
| Ethernet II | Supported | ||
| IEEE 802.1q TAG | Supported | ||
| Frame length range |
| ||
| Concatenation granularities | Supports VC-12, VC-3, VC-12-Xv (X ≤ 63), and VC-3-Xv (X ≤ 3) granularities. | ||
| Encapsulation formats | HDLC | Supported | |
| LAPS | Supported | ||
| GFP-F | Supported | ||
| MPLS technology | Not supported | ||
| VLAN technology | Supports VLAN transparent transmission. | ||
| Maximum uplink bandwidth | 622 Mbit/s | ||
| Maximum bound bandwidth | 12xVC-3, or 63xVC-12 + 9xVC-3 | ||
| VCTRUNK specifications | Number of supported VCTRUNKs: 4 Configuration principles are as follows:
| ||
| Protection schemes | TPS | Not supported | |
| LCAS | Supports LCAS, which dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042. | ||
| LPT | Supports P2P LPT, which comply with ITU-T G.7042. | ||
| LAG | Not supported | ||
| Synchronization | Synchronous Ethernet | Not supported | |
| IEEE 1588v2 | Not supported | ||
| Maintenance features | ETH OAM |
| |
| Test Frame | Supports test frames in GFP bearer mode. | ||
| Response to ping | Not supported | ||
| Port mirroring | Not supported | ||
| Loopback capability | PHY layer at Ethernet ports | Supports inloops. | |
| MAC layer at Ethernet ports | Supports inloops. | ||
| VC-4 level | Not supported | ||
| VC-3 level | Supports inloops and outloops. | ||
| VC-12 level | Not supported | ||
| RMON | Supports Ethernet performance monitoring at the port level. | ||
| Warm resets | Supported (Warm resets do not affect services.) | ||
| Cold resets | Supported | ||
| Alarms and performance events | Reports various alarms and performance events, which facilitates the management and maintenance of the equipment. | ||
| QoS | Not supported | ||
| Hub/Spoke | Not supported | ||
| Traffic control | Supports the FE port-based traffic control function that complies with IEEE 802.3x. NOTE: Only EPL services support port-based traffic control. | ||
The technical specifications of the EFT4 include the Ethernet performance specifications, mechanical specifications, and power consumption.
Table 1 lists the parameters specified for the electrical interfaces of the EFT4.
| Port type | Description |
|---|---|
| FE electrical interfaces | FE electrical interfaces (RJ-45/EoS) |
The following part lists the throughput specifications, packet loss ratio in the case of overloading, delay specifications, and back-to-back specifications of the EFT4 board of the R1 version.
Figure 1 shows the connection for testing the throughput specifications, packet loss ratio in the case of overloading, and latency specifications of the EFT4.
Figure 2 shows the connection for testing the back-to-back specifications of the EFT4.
Table 2 lists the throughput specifications of the EFT4. Table 3 lists the packet loss ratio in the case of overloading of the EFT4. Table 4 lists the latency specifications of the EFT4. Table 5 lists the back-to-back specifications of the EFT4.
Table 2 lists the throughput specifications of the EFT4. The values are obtained when the SmartApplication is set as follows:
| Frame Size (Byte) | Passed Rate (%) | (01,01,01) to (01,01,02) (pks/sec) | (01,01,02) to (01,01,01) (pks/sec) | Total (pks/sec) |
|---|---|---|---|---|
| 64 | 100.00 | 148810 | 148810 | 297620 |
| 128 | 100.00 | 84459 | 84459 | 168918 |
| 256 | 100.00 | 45290 | 45290 | 90580 |
| 512 | 100.00 | 23496 | 23496 | 46992 |
| 1024 | 100.00 | 11973 | 11973 | 23946 |
| 1280 | 100.00 | 9615 | 9615 | 19230 |
| 1518 | 100.00 | 8127 | 8127 | 16254 |
Table 3 lists the packet loss ratio in the case of overloading of the EFT4. The values are obtained when the SmartApplication is set as follows:
| Frame Size (Byte) | Rate Tested (%) | (01,01,01) to (01,01,02) (%) | (01,01,02) to (01,01,01) (%) | Average (%) |
|---|---|---|---|---|
| 64 | 100.00 | 0.000 | 0.000 | 0.000 |
| 128 | 100.00 | 0.000 | 0.000 | 0.000 |
| 256 | 100.00 | 0.000 | 0.000 | 0.000 |
| 512 | 100.00 | 0.000 | 0.000 | 0.000 |
| 1024 | 100.00 | 0.000 | 0.000 | 0.000 |
| 1280 | 100.00 | 0.000 | 0.000 | 0.000 |
| 1518 | 100.00 | 0.000 | 0.000 | 0.000 |
Table 4 lists the latency specifications of the EFT4. The values are obtained when the SmartApplication is set as follows:
| Frame Size (Byte) | Rate Tested (%) | (01,01,01) to (01,01,02) (us)-CT (us) | Average (CT) (us) | (01,01,01) to (01,01,02) (us)-S&F (us) | Average (S&F) (us) |
|---|---|---|---|---|---|
| 64 | 100.00 | 506.4 | 506.4 | 501.2 | 501.2 |
| 128 | 100.00 | 518.8 | 518.8 | 508.5 | 508.5 |
| 256 | 100.00 | 536.2 | 536.2 | 515.8 | 515.8 |
| 512 | 100.00 | 578.9 | 578.9 | 538.0 | 538.0 |
| 1024 | 100.00 | 653.4 | 653.4 | 571.4 | 571.4 |
| 1280 | 100.00 | 688.1 | 688.1 | 585.6 | 585.6 |
| 1518 | 100.00 | 720.6 | 720.6 | 599.1 | 599.1 |
Table 5 lists the back-to-back specifications of the EFT4. The values are obtained when the SmartApplication is set as follows:
| Frame Size (Byte) | Rate Tested (%) | (01,01,01) to (01,01,02) Burst Size (Number of Frames) | (01,01,02) to (01,01,01) (Number of Frames) | Total (Number of Frames) |
|---|---|---|---|---|
| 64 | 100.00 | 297620 | 297620 | 595240 |
| 128 | 100.00 | 168918 | 168918 | 337836 |
| 256 | 100.00 | 90580 | 90580 | 181160 |
| 512 | 100.00 | 46992 | 46992 | 93984 |
| 1024 | 100.00 | 23946 | 23946 | 47892 |
| 1280 | 100.00 | 19230 | 19230 | 38460 |
| 1518 | 100.00 | 16254 | 16254 | 32508 |
The mechanical specifications of the EFT4 are as follows:
The maximum power consumption of the EFT4 at room temperature (25°C) is 14 W.
