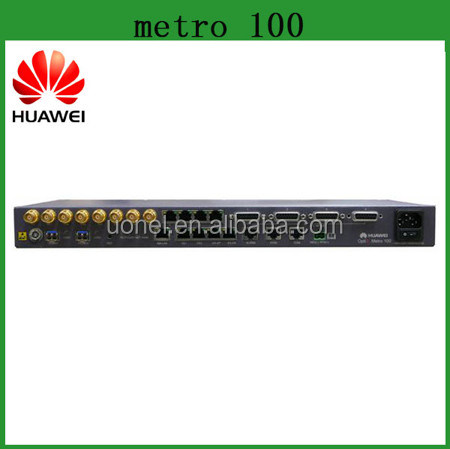

SDH OptiX Metro 100 SS-SCBG01

Name: SDH OptiX Metro 100 SS-SCBG01
Brand: Huawei
SKU: SDH OptiX Metro 100 SS-SCBG01
Availability: InStock
ISBN: 14208465

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	SDH OptiX Metro 100 SS-SCBG01

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	SDH PDH Equipment	Maximum Power Consumption:	16W
Maximum Weight:	2.9kg	Fuse Capacity:	1A
Dimensions:	442 Mm (W) X 220 Mm (D) X 43.6 Mm (H)	Power Supply:	DC: -48V DC Or -60V DC AC: 220V/110V AC
Aggregation:	STM-1	Supported Interfaces:	STM-1(o), E1(e), FE(e)
Networking Mode:	Supports Multiple SDH Networking Topologies, Such As Chain	Auxiliary Interface:	10M/100M NM Interface, External UPM Management Port
Port:	Shenzhen

SDH OptiX Metro 100 SS-SCBG01

The OptiX Metro 100 supports SDH services,PDH services,Ethernet services.

Service Type	Maximum Access Capacity
SDH services	2xSTM-1 (o)
PDH services	4xE1
Ethernet services	2xFE (e)

Function Unit

Functions and features of the PDH unit

Functions and Features	Description
Basic function	Transmits and receives 4xE1 services.
Alarm and performance event	Supports various alarms and performance events, which facilitates the management and maintenance of the equipment; supports the alarm reversion function.
Clock source	Supports the settings and query of 4xE1 clock re-timing function. Supports the extraction of E1 clocks over channel 1 only.
Maintenance features	Supports inloop and outloop at E1 ports so that faults can be located quickly. Supports the setting of overhead bytes to be sent/received, thus enabling the board to function as an overhead instrument. Supports the settings of thresholds for the excessive errors. Supports pseudo-random binary sequence (PRBS).
Overhead processing	Processes path overheads at the VC-12 rate. Supports the settings and query of overhead bytes such as J2 and V5.
Other functions	Supports three types of E1 interfaces: RJ-45 (120 ohms), BNC (75 ohms), and DB15 (X.21).

Functions and features of the SDH unit

Functions and Features	Description
Basic function	Transmits and receives 2xSTM-1 optical signals.
Alarm and performance event	Supports various alarms and performance events, which facilitates the management and maintenance of the equipment; supports the alarm reversion function.
Clock source	Supports the line clock extraction function.
Maintenance features	Supports the outloop on SDH optical interfaces and inloop and outloop on VC-4 paths, and the automatic release of loopbacks. Supports the setting of overhead bytes to be sent/received, thus enabling the board to function as an overhead instrument. Supports the settings of thresholds for the excessive errors. Supports PRBS.
Overhead processing	Provides transparent DCCs and orderwire byte channels. Supports the setting and query of J0, J1, and C2 bytes.
Optical module	Supports the query of the manufacturing information about SFP modules. Supports single-fiber bidirectional SFP optical modules. Supports the status query of SFP modules. Supports hot-swapping of SFP optical modules. Supports the setting and query of lasers. Supports the automatic laser shutdown (ALS) function of lasers.

Functions and features of the clock unit

Functions and Features

Description

Clock protocol

Supports the Standard Synchronization Status Message (SSM) protocol.

Working mode

Supports the tracing mode, hold-over mode, and free-run mode.

Clock source

Supports the line clock extraction function.

When the tributary is normal, 2 MHz clock is extracted and transmitted to the cross-connect and timing module; when the tributary is abnormal, the cross-connect and timing module does not use 2 MHz clock.
Only the extraction of E1 clocks over channel 1 is supported.

Functions and features of the power unit

Functions and Features	Description
Power supply types	Supports AC and DC power supplies.
Power supply protection	The AC power input and the DC power input back up for each other. When the two power inputs are unavailable, the VOLT_LOS alarm is reported.
Power detecting unit	Supports the detection on the AC power input and DC power input. When either of the power inputs fails, the POWER_FAIL alarm is reported.

Ethernet features supported by the OptiX Metro 100

Feature	Description
Ethernet frame encapsulation format	Supports the GFP-F, LAPS, and HDLC encapsulation formats.
Jumbo frame	Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
Mapping mode	Supports VC-12 or VC-3 virtual concatenation.
Ethernet test frame	Supports Ethernet test frames.
Interface Characteristics	Supports auto-negotiation, 10/100M full-duplex working modes. Supports traffic control at port, counting of transmitted and received packets, and query of port state.
Loopback	Supports Physical layer inloop or MAC layer inloops/outloops at the Ethernet port. Supports inloops and outloops on VC-3 channels, and the automatic release of loopbacks.
LCAS	Supports link capacity adjustment scheme (LCAS).
LPT	Supports point-to-point link pass through (LPT).
RMON	Supports remote network monitoring (RMON).
Transfer or discard of frames shorter than 64 bytes	Supports the discard (default setting) or transfer of frames shorter than 64 bytes. This function can be enabled or disabled on the NMS.
Frames with frame check sequence (FCS) errors	Supports the transparent transmission of frames with FCS errors. This function can be enabled or disabled on the NMS.
Minimum frame length	Supports the setting of the minimum frame length to 64 bytes.

Functions and features of the extended unit

Functions and Features	Description
Basic function	Supports the aggregation of a maximum of 16xE1 services into one optical path.
Maintenance function	Supports loopbacks on stacking interfaces.

Specification

Specifications	Metro 100
Aggregation	STM-1
Dimensions	43.6 mm (H) x 442 mm (W) x 220 mm (D)
Switch Capacity	1.25Gbit/s full higher order and lower order cross-connect capacity
Supported Interfaces	STM-1(o), E1(e), FE(e)
Power Supply	DC: -48V DC or -60V DC AC: 220V/110V AC
Networking Mode	Supports multiple SDH networking topologies, such as chain, ring, tangent rings, intersecting rings, etc
Clock Synchronization	Line clock source Tributary clock source One external clock input/output (2 Mbit/s)
Auxiliary Interface	10M/100M NM interface, external UPM management port, stack interfaces Alarm interface
