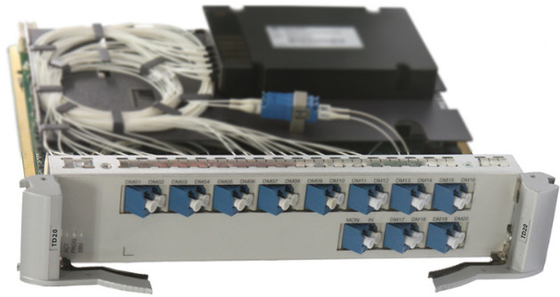

| TN97TD20: | 20-ports Tunable DeMultiplexing Board(extended C_band) |
|---|
The TD20 board provides for colorless drop of a maximum of 20 coherent wavelength signals, broadcast loss compensation, and in-service monitoring of optical power, alarms, and performance.
Table 1 describes the functions and features of the TD20 board.
| Function and Feature | Description |
|---|---|
| Basic function | Broadcasts a multi-wavelength signal that contains up to 20 optical signals for local dropping (colorless application). |
| WDM specification | Supports the DWDM specification. |
| Compensation for broadcast loss | Uses the built-in EDFA module to compensate for broadcast loss.
NOTE: The TN97TD20 board does not support the function. |
| In-service optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. NOTE: The TN97TD20 board does not support the function. |
| Alarm and performance event monitoring |
NOTE: The TN97TD20 board does not support the function. |
| Optical-layer ASON | Supported |
| Spectrum application | Only the TN97TD20 board supports extended C-band wavelengths |
Specifications include optical specifications, mechanical specifications, and power consumption.
| Parameter | Unit | Value |
|---|---|---|
| Operating wavelength range | nm | 1529 to 1561 |
| Total input power range of IN port | dBm | -17.5 to 17 |
| Input power range per channel of IN port | dBm | -17.5 to 4 |
| Inherent insertion loss of internal VOA | dB | <=1.5 |
| Dynamic attenuation range of internal VOA | dB | 20 |
| Adjustment accuracy of internal VOA | dB | 1 |
| Nominal input power range of internal OA | dBm | -19 to -3 |
| Input power range per channel of internal OA | dBm | -19 to -16 |
| Nominal gain of internal OA | dB | 23 |
| Noise figure (NF) of internal OA | dB | <=6.0 |
| Maximum total output optical power of internal OA | dBm | 20 |
| Total output power range of DMxa ports | dBm | -13 to 9 |
| Single output power range of DMxa ports | dBm | -13 to -4 |
| Maximum channel insertion loss difference (IN-DMxa) | dB | 3 |
| Maximum reflectance tolerance at input | dB | <-40 |
| Maximum reflectance tolerance at output | dB | <-40 |
| Polarization dependent loss | dB | <=0.5 |
| a: DMx represents the DM01-DM20 interface. | ||
| Item | Unit | Value |
|---|---|---|
| Operating wavelength range | nm | 1528.8 to 1567.6 |
| Insertion loss of a 1 x 20 optical splitter | dB | < 15 |
| Total insertion loss flatness of IN-DMxa | dB | < 1 |
| Polarization dependent loss | dB | < 0.5 |
| a: DMx represents the DM01-DM20 interface. | ||
TN12TD20:264.6 mm (10.4 in.) x 50.8 mm (2.0) x 220 mm (8.7 in.)
TN97TD20:264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
TN12TD20: 1.6 kg (3.5 lb.)
TN97TD20 : 1.15 kg (2.54 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN12TD20 | 13.0 | 15.0 |
| TN97TD20 | 1.0 | 1.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
