Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11RMU9 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

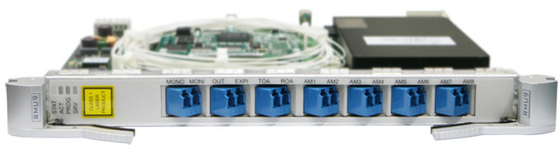

| TN11RMU9: | 9-port ROADM Multiplexing Board |
|---|
The RMU9 board is mainly used to dynamically groom wavelengths, monitor online optical performance, and monitor alarms and performance events.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Adds eight single-wavelength signals or multi-wavelength signals to the main path. When working with an OTU board supporting tunable wavelengths, the RMU9 board can receive any wavelength through any of the AM1-AM8 optical ports. |
| WDM specification | Supports the DWDM specifications. |
| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. |
| Port blocking | Blocks all input wavelengths at one of the AM1 to AM8 optical interfaces. NOTE: Only the TN11RMU902 board supports this function. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, dimensions, weight, and power consumption.
Table 1 lists the optical specifications of the RMU9 board.
| Item | Unit | Value | |
|---|---|---|---|
| Operating wavelength range | nm | 1529-1561 | |
| Insertion loss | EXPI-OUT | dB | <= 8.5 |
| AMxa-TOA | dB | <= 12.5b | |
| ROA-OUT | dB | <= 1.5 | |
| Reflectance | dB | < -40 | |
| Attenuation range | dB | 0-15 | |
| Attenuation precision | dB | < 1 (0 to 10 dB) < 1.5 (> 10 dB) | |
| VOA attenuation under channel blocking functionc | dB | > 42 | |
| Polarization dependence loss | dB | <= 0.5 | |
| NOTE: a: AMx represents the AM1-AM8 interface. b: This value is obtained when the attenuation of the VOA is set to 0 dB. c: Only the TN11RMU902 supports the channel blocking function. | |||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11RMU901 | 7.7 | 8.6 |
| TN11RMU902 | 8.2 | 9.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
