Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11MR803 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN11MR803: | 193.70Tz~194.40THz |
|---|

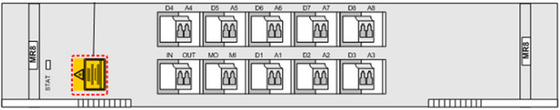

The MR8 board is mainly used to add/drop and multiplex signals, to query wavelengths, and to provide a cascading interface.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Adds/drops and multiplexes eight channels of signals to/from the multiplexed signals. |
| WDM specification | Supports the DWDM specifications. |
| Cascading interface | Provides the interface to cascade another optical add and drop multiplexing board to achieve expansion. |
| Wavelength query | Queries the wavelengths for the added or dropped signals. |
| Optical-layer ASON | Not supported |
Specifications include optical specifications, dimensions, weight, and power consumption.
Table 1 lists the optical specifications of the MR8 board.
| Interface | Item | Unit | Value |
|---|---|---|---|
| - | Operating wavelength range | nm | 1529-1561 |
| - | Adjacent channel spacing | GHz | 100 |
| IN-D1 IN-D2 IN-D3 IN-D4 IN-D5 IN-D6 IN-D7 IN-D8 | -1dB spectral width | nm | >= 0.2 |
| Drop channel insertion loss | dB | <= 4 | |
| Adjacent channel isolation | dB | > 25 | |
| Non-adjacent channel isolation | dB | > 35 | |
| A1-OUT A2-OUT A3-OUT A4-OUT A5-OUT A6-OUT A7-OUT A8-OUT | -1dB spectral width | nm | >= 0.2 |
| Add channel insertion loss | dB | <= 4 | |
| IN-MO MI-OUT | Insertion loss | dB | <= 3.5 |
| Isolation | dB | > 13 | |
| - | Maximum reflectance | dB | -40 |
The MR8 adds/drops and multiplexes eight channels of signals to/from the multiplexed signals. There are five groups of wavelengths.
| Group | 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|---|
| Characteristic Code | 92109280 | 92909360 | 93709440 | 94509520 | 95309600 | |
| A1/D1 | Wavelength No. | 80 | 64 | 48 | 32 | 16 |
| Wavelength (nm) | 1560.61 | 1554.13 | 1547.72 | 1541.35 | 1535.04 | |
| Frequency (THz) | 192.10 | 192.90 | 193.70 | 194.50 | 195.30 | |
| A2/D2 | Wavelength No. | 78 | 62 | 46 | 30 | 14 |
| Wavelength (nm) | 1559.79 | 1553.33 | 1546.92 | 1540.56 | 1534.25 | |
| Frequency (THz) | 192.20 | 193.00 | 193.80 | 194.60 | 195.40 | |
| A3/D3 | Wavelength No. | 76 | 60 | 44 | 28 | 12 |
| Wavelength (nm) | 1558.98 | 1552.52 | 1546.12 | 1539.77 | 1533.47 | |
| Frequency (THz) | 192.30 | 193.10 | 193.90 | 194.70 | 195.50 | |
| A4/D4 | Wavelength No. | 74 | 58 | 42 | 26 | 10 |
| Wavelength (nm) | 1558.17 | 1551.72 | 1545.32 | 1538.98 | 1532.68 | |
| Frequency (THz) | 192.40 | 193.20 | 194.00 | 194.80 | 195.60 | |
| A5/D5 | Wavelength No. | 72 | 56 | 40 | 24 | 8 |
| Wavelength (nm) | 1557.36 | 1550.92 | 1544.53 | 1538.19 | 1531.90 | |
| Frequency (THz) | 192.50 | 193.30 | 194.10 | 194.90 | 195.70 | |
| A6/D6 | Wavelength No. | 70 | 54 | 38 | 22 | 6 |
| Wavelength (nm) | 1556.55 | 1550.12 | 1543.73 | 1537.40 | 1531.12 | |
| Frequency (THz) | 192.60 | 193.40 | 194.20 | 195.00 | 195.80 | |
| A7/D7 | Wavelength No. | 68 | 52 | 36 | 20 | 4 |
| Wavelength (nm) | 1555.75 | 1549.32 | 1542.94 | 1536.61 | 1530.33 | |
| Frequency (THz) | 192.70 | 193.50 | 194.30 | 195.10 | 195.90 | |
| A8/D8 | Wavelength No. | 66 | 50 | 34 | 18 | 2 |
| Wavelength (nm) | 1554.94 | 1548.51 | 1542.14 | 1535.82 | 1529.55 | |
| Frequency (THz) | 192.80 | 193.60 | 194.40 | 195.20 | 196.00 | |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11MR8 | 0.2 | 0.3 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
