Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11ITL04 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

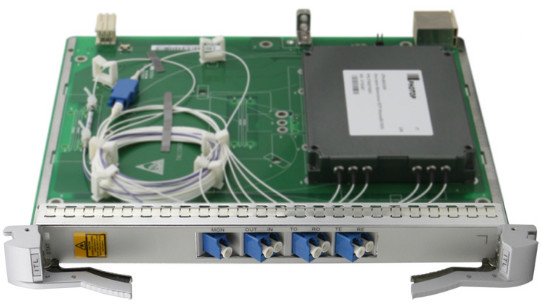

| TN11ITL04: | Interleaver Board(C Band) |
|---|
The ITL board multiplexes and demultiplexes wavelengths and supports in-service monitoring of the optical spectrum.
Table 1 describes the functions and features of the ITL board.
| Function and Feature | Description |
|---|---|
| Basic function | Multiplexes and demultiplexes C_ODD and C_EVEN wavelengths. |
| Spectrum application | Only the TN11ITL06 supports extended C-band wavelengths. |
| In-service optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, mechanical specifications, and power consumption.
| Parameter | Unit | Value | |
|---|---|---|---|
| Input channel spacinga | - | GHz | 100 |
| Output channel spacinga | - | GHz | 50 |
| Insertion loss | RE-OUT RO-OUT | dB | < 3 |
IN-TE IN-TO | dB | < 3 | |
| Max. difference between channel insertion losses | dB | < 1 | |
| Isolation | IN-TE IN-TO | dB | > 25 |
| Maximum reflectance | dB | -40 | |
| Directivity | dB | > 45 | |
| PMD | ps | < 0.5 | |
| Polarization dependent loss | dB | < 0.5 | |
| Input optical power range | dBm | <= 26 | |
| a: "input" and "output" in this table are defined based on the multiplexing process of the interleaver. | |||
| Item | Unit | Value | |
|---|---|---|---|
| Input channel spacinga | GHz | 100 | |
| Output channel spacinga | GHz | 50 | |
| Insertion loss | RE-OUT RO-OUT | dB | < 4.5 |
IN-TE IN-TO | dB | < 2.5 | |
| Maximum channel insertion loss difference | dB | < 1 | |
| Isolation | IN-TE IN-TO | dB | > 25 |
| Maximum reflectance | dB | -40 | |
| Directivity | dB | > 45 | |
| PMD | ps | < 0.5 | |
| Polarization dependent loss | dB | < 0.5 | |
| Input optical power range | dBm | <= 26 | |
| a: The input and output ends are defined based on the multiplexing process of the interleaver. | |||
| Board | Typical power consumption (W) | Maximum power consumptiona (W) |
|---|---|---|
| TN11ITL | 0.2 | 0.3 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
