Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN97D48 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

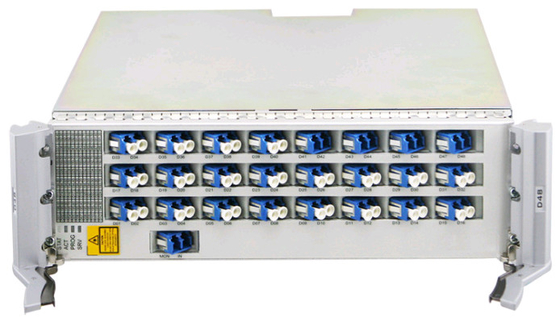

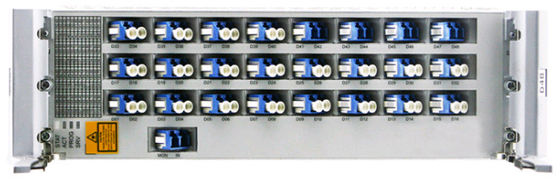

| TN97D48: | 48-port Demultiplexer Board |
|---|
The main functions and features supported by the D48 are demultiplexing, online optical performance monitoring, alarms and performance events monitoring.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function | Demultiplexes main path signal to a maximum of 48 channels of service.
|
| Online optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Alarms and performance events monitoring | Detects the optical power and reports the alarms and performance events for the board. |
Specifications include optical specifications, dimensions, weight and power consumption.
Table 1 lists the optical specifications of the D48.
| Item | Unit | Value |
|---|---|---|
| Adjacent channel spacing | GHz | 100 |
| Insertion loss | dB | <6.5 |
| Reflectance | dB | <-40 |
| Operating wavelength range | THz | D4801: 191.3 to 196.0 D4802: 191.35 to 196.05 |
| Adjacent channel isolation | dB | >25 |
| Non-adjacent channel isolation | dB | >30 |
| Polarization dependent loss | dB | ≤0.5 |
| Temperature characteristics | nm/°C | <0.002 |
| Maximum channel insertion loss difference | dB | ≤3 |
| Channel bandwidth | nm | 1dB bandwidth: ≥0.4 3dB bandwidth: ≥0.6 20dB bandwidth: ≤1.2 |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN97D48 | 10.0 | 13.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
