Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN12M4001 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN12M4001: | 40 C_EVEN Wavelength Signals |
|---|

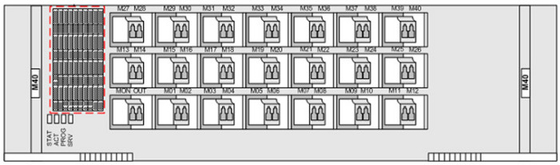

The M40 board performs wavelength multiplexing and supports in-service optical performance monitoring, and alarms and performance events monitoring.
Table 1 describes the functions and features of the M40 board.
| Function and Feature | Description |
|---|---|
| Basic function | Multiplexes a maximum of 40 wavelength signals into one multi-wavelength signal.
|
| In-service optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Alarms and performance events monitoring | Detects the optical power and reports the alarms and performance events for the board. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, mechanical specifications, and power consumption.
Table 1 lists the optical specifications of the M40 board.
| Parameter | Unit | Value |
|---|---|---|
| Adjacent channel spacing | GHz | 100 |
| Insertion loss | dB | <= 6.5 |
| Reflectance | dB | < -40 |
| Operating wavelength range | nm | 1529-1561 |
| Adjacent channel isolation | dB | > 22 |
| Non-adjacent channel isolation | dB | > 25 |
| Polarization dependent loss | dB | <= 0.5 |
| Temperature characteristics | nm/°C | <= 0.002 |
| Max. difference between channel insertion losses | dB | <= 3 |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11M40 | 10.0 | 13.0 |
| TN12M40 | 10.0 | 13.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
