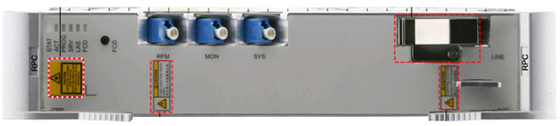

| TN97RPC01: | Extended C Band Backward Raman Processing Board |
|---|
The main function and feature supported by the RPC board are online optical performance monitoring.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Online optical performance monitoring | Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Alarms and performance events monitoring | Detects the optical power of the pump laser, temperature control current, pump current, and back facet current. Supports board temperature detection and reporting. Supports return loss detection. |
| FCD function | The FCD button and indicator are provided. You can press the FCD button on the front panel to trigger FCD. The detection process and results can be identified by the FCD indicator blinking frequency and indicator status. For details, see Front Panel. |
| Working mode | Supports the power locking modes. |
Specifications include optical specifications, weight and power consumption.
| Item | Unit | Value |
|---|---|---|
| Pump wavelength range | nm | 1400-1500 |
| Operating wavelength range | nm | 1528.8-1567.6 |
| Maximum pump power | dBm | 31 |
| Channel gain on G.652 fiber | dB | > 18 |
| Channel gain on G.653 fiber | dB | > 16 |
| Channel gain on LEAF fiber | dB | > 16 |
| Channel gain on TWRS fiber | dB | > 16 |
| Effective noise figure on G.652 fiber | dB | < -1 |
| Effective noise figure on G.653 fiber | dB | < -1 |
| Effective noise figure on LEAF fiber | dB | < -1 |
| Effective noise figure on TWRS fiber | dB | < -1 |
| PDLa | dB | < 0.5 |
| PMDb | ps | < 0.5 |
| a: polarization dependent loss b: polarization mode dispersion | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN97RPC01 | 43 | 46 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
