Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN97ERPC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

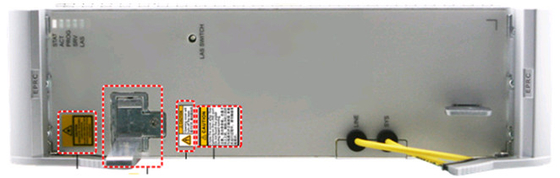

| TN97ERPC: | Extended C-band Enhanced Raman Processing Board | Port: | Shenzhen |
|---|
The main function and feature supported by the ERPC board are alarms and performance events monitoring.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Alarms and performance events monitoring | Detects the optical power of the pump laser, and pump current. Supports board temperature detection and reporting. Supports detection on the reflection optical power. NOTE: During the startup or use of a laser, if the detected reflection optical power is greater than 15 dBm, the laser will be automatically shut down. |
| Working mode | Supports the pump power locking mode. |
Specifications include optical specifications, weight and power consumption.
| Item | Unit | Value |
|---|---|---|
| Pump wavelength range | nm | 1274 to 1278 |
| Operating wavelength range | nm | 1528.8 to 1567.6 |
| Output optical power | dBm | 30 to 38.5 |
| Output optical power stability | - | ±3% |
| LINE-SYS Insertion loss | dB | < 1.5 (1528.8 nm to 1567.6 nm) < 3.5 (1420 nm to 1500 nm) < 4.0 (1600 nm to 1640 nm) |
| Output terminal return loss of the SYS port or the LINE port | dB | > 40 |
| Channel gain on G.652 fiber a | dB | > 22 |
| Channel gain on G.654A fiber a | dB | > 22 |
| Channel gain on G.654B fiber a | dB | > 25 |
| Effective noise figure on G.652 fiber a | dB | < -3.5 |
| Effective noise figure on G.654A fiber a | dB | < -3.5 |
| Effective noise figure on G.654B fiber a | dB | < -3.5 |
| Polarization dependent gain (PDG) | dB | < 0.5 |
| Polarization Mode Dispersion (PMD) | ps | < 0.5 |
| a: This gain value is in the case that the ERPC board is used in enhanced backward pumping. | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN97ERPC01 | 56 | 59 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
