Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN58NS4T61 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN58NS4T61: | 150000 Ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, WDCM)-PIN | Port: | Shenzhen |
|---|

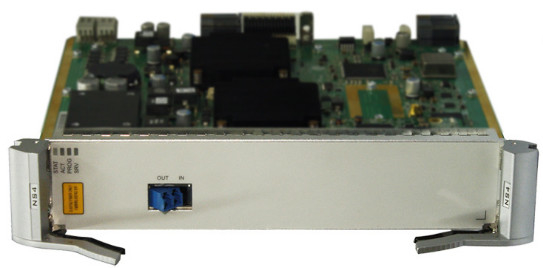

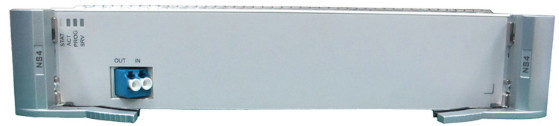

The NS4 board is used at an electrical REG station to electrically regenerate one optical signal.
For detailed functions and features, refer to Table 1.
| Function and feature | Description | ||
|---|---|---|---|
| Basic function | Electrically regenerates one optical signal at an electrical REG station. | ||
| Supported service rate | OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN functions |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding | TN54NS4: Supports HFEC and SDFEC. TN56NS4: Supports SDFEC. TN57NS4: Supports HFEC and SDFEC2. TN58NS4: Supports SDFEC2. NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| Physical clock | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Supported | ||
| Protection scheme | Not supported | ||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | - | |
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
TN54NS4/TN56NS4/TN57NS4: 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
TN58NS4: 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)
TN54NS4: 2.5 kg (5.5 lb.)
TN56NS4: 2.5 kg (5.5 lb.)
TN57NS4: 2.6 kg (5.7 lb.)
TN58NS4: 1.62 kg (3.57 lb.)
| Board | WDM-Side Module | Typical Power Consumption (W) | Maximum Power Consumptiona(W) |
|---|---|---|---|
| TN54NS4 | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 155 | 167 |
55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 167 | 185 | |
| TN56NS4 | 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 160 | 170 |
| TN57NS4 | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 155.0 | 167.0 |
150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM-Enhanced)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM, Metro)-PIN | 171.7 | 188.9 | |
| TN58NS4 | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM-Enhanced)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM, Metro)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, LH)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, Enhanced)-PIN | 94 | 101 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
