Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN17LTXT65 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN17LTXT65: | 12000 Ps/nm-C Band-Tunable Wv-ePDM-QPSK(SDFEC2,wDCM, Metro)-PIN | Port: | Shenzhen |
|---|

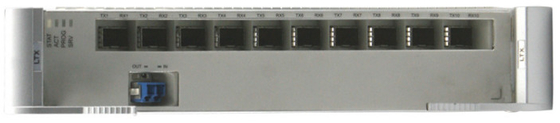

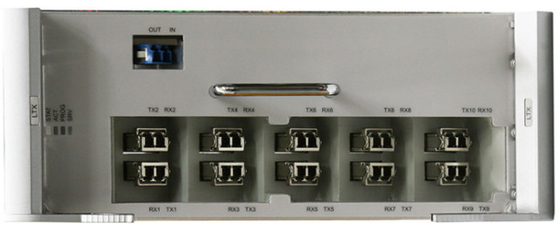

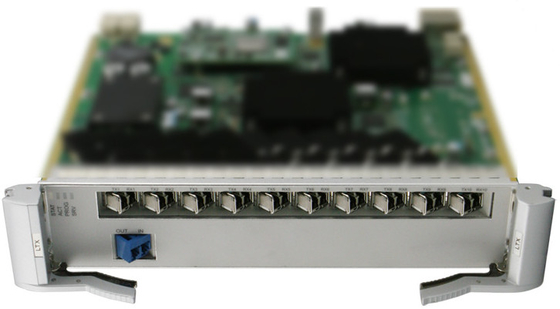

The LTX board is mainly used to achieve wavelength tunable and to provide OTN interfaces and ESC.
For detailed functions and features, see Table 1 and Table 2.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | LTX converts signal as follows:
| ||
| Client-side service type | 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s FC1200: SAN service at a rate of 10.51 Gbit/s FC800: SAN service at a rate of 8.5 Gbit/s Infiniband 5G: SAN service at a rate of 5 Gbit/s | ||
| OTN function |
NOTE: The functions on ODUflex layer are only supported by TN15LTX/TN17LTX, the TCM and TCM non-intrusive monitoring function on ODU2 layer are only supported by TN15LTX/TN17LTX. | ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | The board can tune the optical signal output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz. | ||
| ESC function | Supported on the WDM-side. The ESC function is supported on the client side of the TN15LTX/TN17LTX board only when OTU2/OTU2e signals are received. NOTE: The TN12LTX/TN11LTX board supports ESC transparent transmission rather than ESC processing on the client side. To implement the ESC function, the TN15LTX/TN17LTX board supports a maximum of six signals on the client side. | ||
| PRBS test function | Supports the PRBS function on the client and WDM sides. NOTE: The PRBS function on the client side is supported only when the client-side service type is STM-64/OC-192/OTU2/OTU2e. | ||
| LPT function | The board supports the LPT function only when the client-side service type is 10GE LAN. | ||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| Regeneration board | The WDM-side signals of an LTX board can be regenerated using the LTX,NS4,N401,N402,U401 board of the same type. For example,
| ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| Test frame | TN11LTX/TN12LTX: Not supported TN15LTX/TN17LTX: Supports the test frame function when the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping(10.7G) on its client side. | ||
| Latency measurement | The TN12LTX/TN15LTX/TN17LTX board support latency measurement. The bidirectional latency at the ODUk layer between two OTU boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. NOTE: When the client service is OTU2/OTU2e, the board does not support latency measurement. The latency measurement function can be configured only on one port at a time. | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | When the board receives 10GE LAN services and the port mapping is Bit Transparent Mapping (11.1 G) on its client side, the board can support synchronous Ethernet transparent transmission instead of synchronous Ethernet processing. | ||
| Optical-layer ASON | Supported | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme |
| ||
| Ethernet service mapping mode | TN11LTX/TN12LTX: Bit Transparent Mapping (11.1G) TN15LTX/TN17LTX: Bit Transparent Mapping (11.1G) and MAC Transparent Mapping(10.7G) | ||
| Loopback | Client side | Inloop | Supported |
| Outloop | |||
| WDM side | Inloop | Supported | |
| Outloop | |||
| Protocol or standard compliance | Protocols or standards (non-performance monitoring) with which transparently transmitted services comply | IEEE 802.3ae ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) IBM Private Protocol | |
| Protocols or standards (performance monitoring) for processing services | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | The board is used in an electrical REG station in the system to implement electrical regeneration of optical signals. | ||
| Regenerating rate | OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | The board can tune the optical signal output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz. | ||
| ESC function | Supported | ||
| PRBS test function | Not supported | ||
| LPT function | Not supported | ||
| FEC encoding | TN11LTX/TN12LTX supports HFEC and SDFEC on the WDM side. TN15LTX/TN17LTX supports SDFEC2 on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| Optical-layer ASON | Supported | ||
| Electrical-layer ASON | Not supported | ||
| Protection scheme | Not supported | ||
| Loopback | Not supported | ||
| Protocol or standard compliance | Protocols or standards (non-performance monitoring) with which transparently transmitted services comply | - | |
| Protocols or standards (performance monitoring) for processing services | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
TN11LTX/TN12LTX: 264.6 mm (10.4 in.) x 101.6 mm (4.0 in.) x 220 mm (8.7 in.)
TN15LTX/TN17LTX: 264.6 mm (10.4 in.) x 50.8 mm (2.0 in.) x 220 mm (8.7 in.)
TN11LTX/TN12LTX: 5.8 kg (12.8 lb.)
TN15LTX: 3 kg (6.6 lb.)
TN17LTX: 2.7 kg (5.96 lb.)
| Board | WDM-Side Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TN11LTXT01 (OTU mode) | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 248 | 273 |
| TN11LTXT01 (regeneration mode) | 235 | 247 | |
| TN11LTXT11 (OTU mode) | 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 270 | 300 |
| TN11LTXT11 (regeneration mode) | 250 | 275 | |
| TN12LTXT01 (OTU mode) | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 248 | 273 |
| TN12LTXT01 (regeneration mode) | 235 | 247 | |
| TN12LTXT11 (OTU mode) | 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 270 | 300 |
| TN12LTXT11 (regeneration mode) | 250 | 275 | |
| TN15LTX (OTU mode) | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM, Metro)-PIN | 176 | 190 |
| TN15LTX (regeneration mode) | 160 | 173 | |
| TN17LTX (OTU mode) | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM, Metro)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, LH)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, Enhanced)-PIN | 142 | 152 |
| TN17LTX (regeneration mode) | 126 | 135 | |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
