Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN11LSQT01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TN11LSQT01: | 800 Ps/nm-C Band-Tunable Wavelength-DQPSK-PIN |
|---|

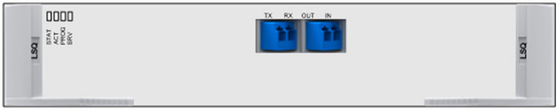

The LSQ board is mainly used to achieve wavelength tunable and to provide OTN interfaces and ESC.
For detailed functions and features, refer to Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | LSQ converts signals as follows:
| ||
| Client-side service type | STM-256/OC-768: SDH/SONET service at a rate of 39.81 Gbit/s OTU3: OTN service at a rate of 43.02 Gbit/s | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||
| ESC function | Supported | ||
| PRBS test function | Supports the PRBS function on the client side. NOTE: The PRBS function of LSQ on the client side is supported only when the client-side service type is STM-256/OC-768. | ||
| LPT function | Not supported | ||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| Regeneration board | WDM-side signals from the TN11LSQT01 board can be regenerated by another TNV1N302T01/TN54NS3T01. WDM-side signals from the TN11LSQT02 board can be regenerated by another TN54NS3T03. | ||
| ALS function | Supports the ALS function on the client side. | ||
| Test frame | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Protection scheme |
| ||
| Loopback | Client side | Inloop | Supported |
| Outloop | |||
| WDM side | Inloop | Supported | |
| Outloop | |||
| Protocol or standard compliance | Protocols or standards (non-performance monitoring) with which transparently transmitted services comply | ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic | |
| Protocols or standards (performance monitoring) for processing services | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
| Board | WDM-Side Optical Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TN11LSQ | 800 ps/nm-C Band-Tunable Wavelength-ODB-PIN | 75.0 | 82.0 |
| 800 ps/nm-C Band-Tunable Wavelength-DQPSK-PIN | 82.0 | 89.0 | |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
