Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN17LSCM08 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

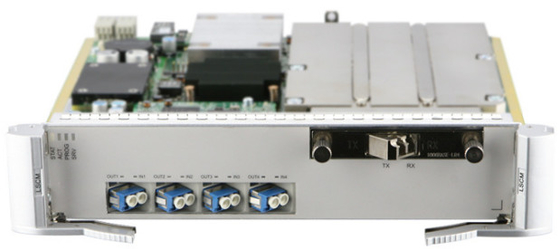

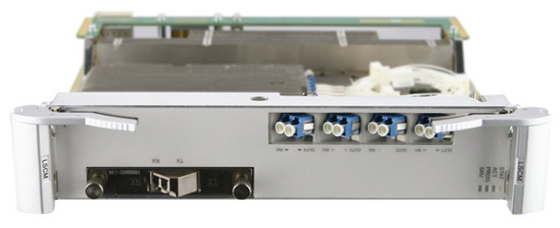

| TN17LSCM08: | 100Gbit/s Wavelength Conversion Board | Port: | Shenzhen |
|---|
The LSCM board is mainly used to provide OTN interfaces and ESC.
For detailed functions and features, see Table 1.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | LSCM converts signal as follows: 100GE/OTU4<->1x OTU4 | ||
| Client-side service type | 100GE: Ethernet service at a rate of 103.125 Gbit/s. OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Not supported | ||
| ESC function | Supported NOTE: When being provisioned with the OTU4 service on the client side, the LSCM board supports ESC transparent transmission, but not ESC processing. | ||
| PRBS test function | When the client-side service type is OTU4, the PRBS function is supported on the client side. When the client-side service type is 100GE or OTU4, the PRBS function is also supported on the WDM side. | ||
| LPT function | Not supported | ||
| FEC coding | Supports ITU-T G.709-compliant forward error correction (FEC) on the client side., only when the client side service type is OTU4. Supports HFEC on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Supports the ALS function on the client side when client services are non-OTN services. | ||
| Test frame | Supported only when the client-side service type is 100GE. | ||
| Latency measurement | The board supports latency measurement. The bidirectional latency at the ODU4 layer between two OTU boards supporting the latency measurement function can be measured, and the latency data is displayed on the U2000. This function is not supported when the client-side service type is OTU4. | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | When receiving 100GE/OTU4 services on the client side, the board supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Not supported | ||
| Protection scheme |
| ||
| Loopback | Client side | Inloop | Supported |
| Outloop | |||
| WDM side | Inloop | Supported | |
| Outloop | |||
| Protocol or standard compliance | Protocols or standards (non-performance monitoring) with which transparently transmitted services comply | IEEE 802.3ba | |
| Protocols or standards (performance monitoring) for processing services | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 ITU-T G.8261 ITU-T G.8262 | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN17LSCM | 93 | 102 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
