Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNS1CTU |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TNS1CTU: | Communication Control And Clock Processing Board | Port: | Shenzhen |
|---|

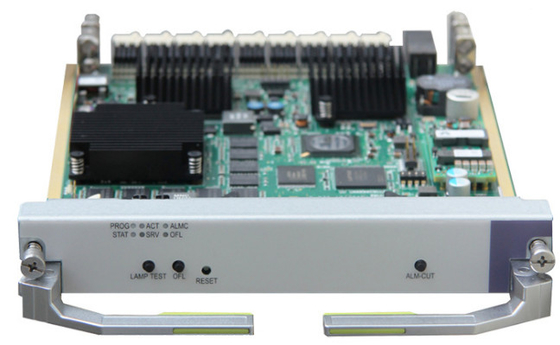

The CTU board implements system communication, provides a clock source for system communication, and supports 1+1 redundancy (active/standby backup).
Table 1 describes the functions and features of the CTU board.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| DCC communication | Supports DCC communication between NEs. |
| Active/Standby backup | Supports active/standby backup. Usually, two CTU boards are configured in a subrack for 1+1 protection. If the active CTU board fails, the standby CTU board automatically becomes active. NOTE: After active/standby switching is completed, NE data must be manually uploaded. |
| Clock function | Provides an ITU-T G.813, ITU-T G.823 and ITU-T G.8275.1 compliant clock signal to service boards.
|
| Electrical-layer ASON | Supported. |
Specifications include dimensions, weight, and power consumption.

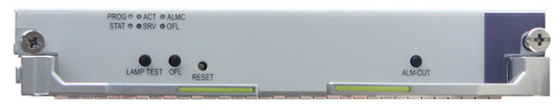

TNU1CTU: Dimensions of the front panel (H x W x D): 477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
TNS1CTU: Dimensions of the front panel (H x W x D): 183 mm (7.2 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
TNU1CTU: 2.7 kg (6.0 lb.)
TNS1CTU: 1.0 kg (2.2 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNU1CTU | 55 | 60.5 |
| TNS1CTU | 30 | 33 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
