Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNS1UXCS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TNS1UXCS: | Enhanced Universal Cross Connect Board | Port: | Shenzhen |
|---|

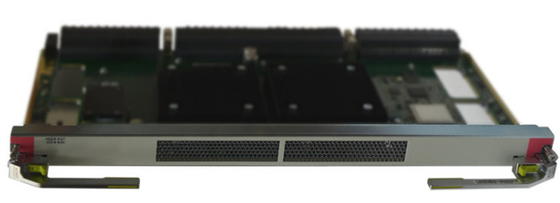

The UXCS board performs centralized cross-connections of electrical signals.
Table 1 describes the functions and features of the UXCS board.
| Function and Feature | Description |
|---|---|
| Basic function | Performs centralized cross-connections of ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) signals, Ethernet packets and VC-4 signals inside the subrack. |

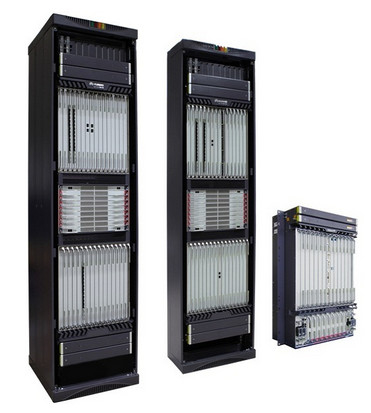

| Configuration and cross-connect capacity | OptiX OSN 9800 U64 subrack (Only supported by the TNU2UXCS board )
OptiX OSN 9800 U32 subrack (Only supported by the TNU2UXCS board )

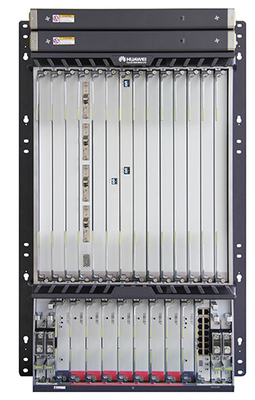

OptiX OSN 9800 U16 subrack (Only supported by the TNS1UXCS board )
|
| Backup mode | The M:N mode is used to configure UXCS boards. M represents the number of protection UXCS boards, and N represents the number of working UXCS boards.
When two UXCS boards are faulty, the system can still function properly. If more than two UXCS boards become faulty, however, the system will fail. |
| Switching mode |
|
| Electrical-layer ASON | Supported |
Specifications include dimensions, weight, and power consumption.
TNU2UXCS: Dimensions of the front panel (H x W x D): 477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
TNS1UXCS: Dimensions of the front panel (H x W x D): 183 mm (7.2 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
TNU2UXCS: 3.06 kg (6.83 lb.)
TNS1UXCS: 2 kg (4.46 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNU2UXCS | 155 | 165 |
| TNS1UXCS | 68 | 72 |
| a:The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
