Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNS1XCS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TNS1XCS: | Centralized Cross-Connect Board |
|---|

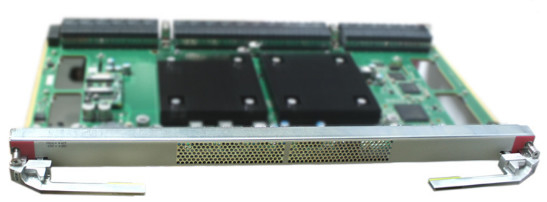

The XCS board performs centralized cross-connections of electrical signals.
Table 1 describes the functions and features of the XCS board.
| Function and Feature | Description |
|---|---|
| Basic function | Performs centralized cross-connections of ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) signals and Ethernet packets inside the subrack. |
| Configuration and cross-connect capacity |
|
| Backup mode | The M:N mode is used to configure XCS boards. M represents the number of protection XCS boards, and N represents the number of working XCS boards.
When two XCS boards are faulty, the system can still function properly. If more than two XCS boards become faulty, however, the system will fail. |
| Switching mode |
|
| Electrical-layer ASON | TNV1XCS:
Other boards: Supported. |
Specifications include dimensions, weight, and power consumption.
TNV1XCS/TNV2XCS: Dimensions of the front panel (H x W x D): 477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
TNS1XCS: Dimensions of the front panel (H x W x D): 183 mm (7.2 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
TNV1XCS/TNV2XCS: 3 kg (6.6 lb.)
TNS1XCS: 1.29 kg (1.55 lb.)
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNV1XCS | 86 | 94.6 |
| TNV2XCS | 86 | 94.6 |
| TNS1XCS | 64 | 70.4 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
