Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNV1S208 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

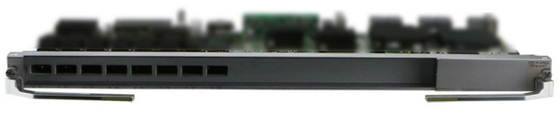

| TNV1S208: | 8xSTM-64 Optical Interface Board |
|---|
The S208 board receives and transmits 8xSTM-64 optical signals and processes overhead bytes.
| Function | Description | |
|---|---|---|
| Basic function | Transmits and receives 8xSTM-64 optical signals. | |
| Specifications of the optical interface | The S208 board supports the I-64.1, S-64.2b, P1L1-2D2 optical interfaces. | |
| Specifications of the optical module |
| |
| Service processing | Supports the VC-12, VC-3, VC-4 services,and VC-4-Xc(X=4/16/64) concatenation services. NOTE: To support VC-12 and VC-3 service granularities, the lower-order cross-connect board SXCL must be used. | |
| ALS | Supported. | |
| SDH Clock Synchronization | Supported. | |
| Overhead processing |
| |
| Alarms and performance events | Reports various alarms and performance events. | |
| Protection schemes | Supports the SNCP. Supports 1+1 single-ended linear MSP. NOTE: Does not support the configuration of both SNCP and 1+1 single-ended linear MSP on an optical port. | |
| Maintenance features |
| |
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | ITU-T G.774.7 |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.707 ITU-T G.783 ITU-T G.774.1 ITU-T G.774.2 ITU-T G.774.3 ITU-T G.774.4 ITU-T G.774.5 ITU-T G.774.6 ITU-T G.774.9 ITU-T G.774.10 ITU-T G.841 ITU-T G.825 ITU-T G.829 | |
| SDH ASON | Supported | |
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNV1S208 | 134 | 144 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
