Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNV1EC116S01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

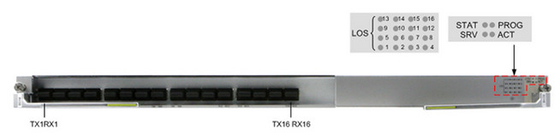

| TNV1EC116S01: | 16*STM-1 CES Interface Board | Port: | Shenzhen |
|---|
The EC116 provides sixteen channelized STM-1 interfaces and supports CES/CEP services.The EC404 provides four channelized STM-4 interfaces and supports CES/CEP services.
Table 1 lists differences regarding the functions and features of EC116/EC404 boards.
| Function and Feature | Supported service | Port working mode |
|---|---|---|
| EC116 | Sixteen channelized STM-1 interfaces | STM-1 interface inloop STM-1 interface outloop VC12 channel inloop VC12 channel outloop VC4 channel inloop VC4 channel outloop |
| EC404 | Four channelized STM-4 interfaces | STM-4 interface inloop STM-4 interface outloop VC12 channel inloop VC12 channel outloop VC4 channel inloop VC4 channel outloop |
Functions and features of EC116/EC404 boards, except those listed in Table 1, are the same. Table 2 lists service functions.
| Function | Description | ||
|---|---|---|---|
| Basic function | Processing capability | Line-rate | |
| Interface function | Automatic laser shutdown | Supported | |
| Automatic loopback release on interfaces | Supported | ||
| PRBSa | Supports PRBS tests in framed or unframed mode for VC12 and VC4 channels in both the transmit and receive directions. | ||
| Traffic buffer time | 50ms | ||
| CES/CEP | Supported service emulation modes | CEP CES
| |
| Supports timeslot compression. In the case of CES services in CESoPSN mode, the board compresses 1 to 31 idle timeslots to conserve NNI-side bandwidth. | |||
| Supported clock mode | Retiming mode | ||
| The jitter buffer time of the CES service can be set to a value ranging from 0.375 ms to 64 ms with steps of 0.125 ms. The jitter buffer time of the CEP service can be set to a value ranging from 0.125 ms to 16 ms with steps of 0.125 ms. | |||
| The packet loading time can be set to a value ranging from 0.25 ms to 3 ms with steps of 0.125 ms. | |||
| Transparent transmission of SDH section overheads | Supported in CEP mode but not in CES mode. | ||
| Transparent transmission of higher order POH | Supported | ||
| Protection | Supports LMSP/MC-LMSP. | ||
| a: The PRBS test function and the port loopback function cannot be both enabled simultaneously. | |||
This chapter describes the power consumption, weight, and valid slots of the EC116/EC404 board.
| Board | Typical Power Consumption (W) | Maximum Power Consumption (W)a | Weight (kg/lb.) | Number of Occupied Slots | Valid Slots |
|---|---|---|---|---|---|
| EC116 | 109 | 120 | 2.85 (6.28) | 1 | U64: IU1 to IU64 U32: IU1 to IU32 U16: IU1 to IU14 |
| EC404 | 98 | 108 | 2.67 (5.89) | 1 | U64: IU1 to IU64 U32: IU1 to IU32 U16: IU1 to IU14 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||||
