Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNV1U210 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

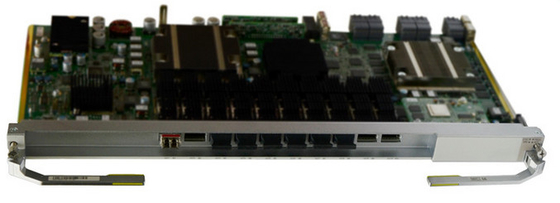

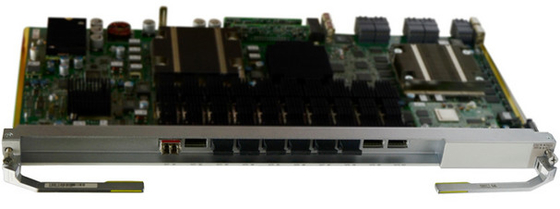

| TNV1U210: | 10 X 10 Gbit/s Universal Line Service Processing Board |
|---|
The U210 board supports the mixed transmission of OTN, SDH and packet services. It supports Layer 2 switching, QoS, and OTN interfaces.
| Board Mode | Input signal | Basic function | More information |
|---|---|---|---|
| Line Mode | OTN | 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2<->10 x OTU2 10 x ODU2e<->10 x OTU2e | Table 2 |
| SDH NOTE: Only theTNV2U210 supports the SDH service. | 2 x STM-64<->2 x ODU2<->2 x OTU2 8 x STM-16<->8 x ODU1<->2 x ODU2<->2 x OTU2 | Table 3 | |
| Packets | A maximum of 100 Gbit/s packets<->80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2<->10 x OTU2, packets<-10 x ODU2e<->10 x OTU2e | Table 4 | |
| Relay mode | - | 10 x OTU2/ OTU2e<->10 x OTU2/ OTU2e | Table 5 |
| Function and Feature | Description | ||||||
|---|---|---|---|---|---|---|---|
| OTN functions |
| ||||||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||||||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||||||
| PRBS test function | Supports the PRBS function on the WDM side. | ||||||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||||||
| Alarms and performance events monitoring |
| ||||||
| Regeneration board | WDM-side signals from TNV1U210 board can be regenerated by another ND2/NQ2/N210/N216/U210. | ||||||
| ALS function | Not supported | ||||||
| Test frame | Not supported | ||||||
| Physical clock | Supported (ODU0, ODU1, ODUflex) | ||||||
| IEEE 1588v2 | Supported NOTE:
| ||||||
| Electrical-layer ASON | Supported | ||||||
| Optical-layer ASON | Supported | ||||||
| Protection schemes |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. ODUk SNCP protection and tributary SNCP are not supported when packet services are cross-connected from the backplane. | ||||||
| Loopback | WDM-Side Loopback | Channel Loopback | |||||
| Supported | ODUk (k = 0, 1, flex) channel loopbacks | ||||||
| ESC | Supported | ||||||
| Function and feature | Description | ||||||
|---|---|---|---|---|---|---|---|
| Overhead processing |
| ||||||
| Protection schemes |
| ||||||
| Alarms and performance events monitoring |
| ||||||
| Service processing | Supports the VC-12, VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services. NOTE: To support VC-12 and VC-3 service granularities, the lower-order cross-connect board SXCL must be used. | ||||||
| Loopback | Supports VC4 loopbacks. Supports Virtual Port loopbacks. | ||||||
| SDH clock | Supported | ||||||
| IEEE 1588v2 | Not supported | ||||||
| Outband DCN | Not supported | ||||||
| SDH ASON | supported NOTE:
| ||||||
| Function | Description | ||
|---|---|---|---|
| QoS | Diffserv | Supported, compliant with RFC 2474 and RFC 2475 | |
| Traffic classification |
| ||
| Traffic policing | Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 2698 | ||
| Congestion management | Class of service (CoS), supporting SP/WFQ scheduling algorithms | ||
| Congestion avoidance | WRED, tail dropping | ||
| Traffic shaping | Port-based traffic shaping, queue-based traffic shaping | ||
| HQoS | Supports service PW polices, tunnel rate limiting, V-UNI egress policies. | ||
| Protection schemes |
| ||
| Packet services have the capability of surviving against multiple fiber cuts | Supported | ||
| IGMP Snooping V1/V2/V3 | Supported | ||
| Maintenance | Ethernet service OAM (CFM) | Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730 | |
| Ethernet port OAM (EFM) | Not supported | ||
| MPLS-TP OAM | Supported, compliant with ITU-T G.8113.1 | ||
| MPLS OAM | Supported, compliant with ITU-T Y.1711, ITU-T Y.1561. | ||
| RMON | Supported | ||
| Port mirroring | Supported | ||
| Loopback | MAC Loopback | Not supported | |
| PHY Loopback | Not supported | ||
| Synchronous Ethernet | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Inband DCN | Supported | ||
| Ethernet data frame format | IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p | ||
| MTU | 9600 bytes. | ||
| Flow control at ports | Not supported | ||
| LPT function | Supported | ||
| Service type | E-Line (VPWS), E-LAN (VPLS) | ||
| Service bearing medium | Port, PW, QinQ | ||
| QinQ | Supports basic QinQ and flexible QinQ. | ||
| E-Line | PW-based service models | Port<->PW | |
| CVLAN<->PW | |||
| SVLAN<->PW | |||
| PW<->PW (MS-PW) | |||
| Port-based service models | Port<->Port | ||
| CVLAN<->Port | |||
| SVLAN<->Port | |||
| UNI-UNI service models | Port<->Port | ||
| CVLAN<->CVLAN, VLAN translation supported | |||
| SVLAN<->SVLAN, VLAN translation supported | |||
| E-LAN | Bridge type | IEEE 802.1d, IEEE 802.1q, IEEE 802.1ad | |
| Bridge learning mode | SVL, IVL | ||
| VSI tag type | C-Aware, S-Aware, T-Aware | ||
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | Electrically regenerates optical signals at an electrical REG station. | ||
| Supported service rate | OTU2: OTN service at a rate of 10.71 Gbit/s OTU2e: OTN service at a rate of 11.1 Gbit/s | ||
| OTN function |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for:
| ||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| Physical clock | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Supported | ||
| Protection scheme | Not supported | ||
| Loopback | Not supported | ||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNV1U210X01 | 199 | 219 |
| TNV2U210X01 | 201 | 220 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
