Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNU1N601T11 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TNU1N601T11: | 40000 Ps/nm-C Band-Tunable Wavelength-200G-16QAM (SDFEC)-PIN |
|---|

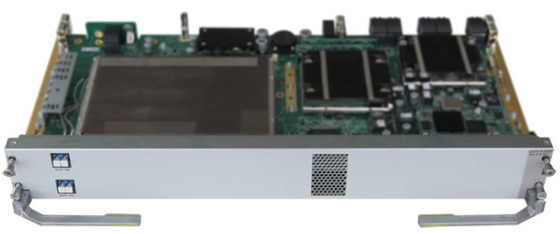

The N601 board supports electrical cross-connections, OTN interfaces, and ESC communication.
The N601 board can work in either line mode or relay mode. Table 1 and Table 2 describe the functions and features of the board.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic function | Supports the following service conversions:
The board supports a mix of ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, and ODUflex signals. | ||
| Cross-connect capabilities | Supports backplane cross-connections of 320 ODU0, 160 ODU1, 40 ODU2, 40 ODU2e, 8 ODU3, 4 ODU4, or 320 ODUflex signals from/to the cross-connect board. | ||
| License | Only the TNU2N601 board supports capacity expansion license: Per 100G Capacity Expansion Fee. The Per 100G Capacity Expansion Fee allows the TNU2N601 board to supports the beyond 100G capacity function. | ||
| OTN functions |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports 80-wavelength-tunable optical modules. | ||
| ESC function | Supported | ||
| PRBS function | Supports the PRBS function on the WDM side. | ||
| LPT function | Not supported | ||
| FEC coding | Supports SDFEC on the WDM side. NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| Regeneration board | WDM-side signals from one N601 board can be regenerated by another N601 board. | ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Optical-layer ASON | Not supported | ||
| Electrical-layer ASON |
| ||
| Protection scheme |
| ||
| Loopback | WDM Side Loopback | ODU4/3/2/1/0 Channel Loopback | ODUflex Channel Loopback |
| Supported | Supported | Supported | |
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3ba ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | |
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||
| Board | WDM-Side Optical Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TNU1N601 TNU2N601 | 40000 ps/nm-C Band-Tunable Wavelength-200G-16QAM (SDFEC)-PIN | 500 | 530 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
