Supported port

Port 1, port 2

Port 1, port 2

Port 1. And port 2 must be set to NONE Mode.

Line mode

Supports the following service conversions:

• 80 x ODU0 / 40 x ODU1 / 10 x ODU2 / 10 x ODU2e / 2 x ODU3 / 1 x ODU4/ 80 x ODUflex <-> 1 x OTU4.
• The port supports a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, and ODUflex signals.

Supports the following service conversions:

• 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex <-> 1 x OTUC2.
• The port supports a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, and ODUflex signals.

Supports the following service conversions:

• 320 x ODU0/ 160 x ODU1/ 40 x ODU2/ 40 x ODU2e/ 8 x ODU3/ 4 x ODU4/ 320 x ODUflex <-> 1 x OTUC4.
• The ports support a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, and ODUflex signals.

Relay mode

• Electrically regenerates OTU4 signals at an electrical REG station.
• Supported service rate: OTU4, at a rate of 111.81 Gbit/s

• Electrically regenerates OTUC2 signals at an electrical REG station.
• Supported service rate: OTUC2, at a rate of 211.45 Gbit/s

• Electrically regenerates one OTUC4 signal at an electrical REG station.
• Supported service rate: OTUC4, at a rate of 422.9 Gbit/s

FEC

SDFEC2

SDFEC

SDFEC

100G ePDM-QPSK

200G_QPSK Mode: 200G ePDM-QPSK^a

200G_16QAM Mode: 200G ePDM-16QAM

200G_8QAM Mode:200G ePDM-8QAM

400G_QPSK Mode: 2 x 200G ePDM-QPSK^a

400G_16QAM Mode: 2 x 200G ePDM-16QAM

400G_8QAM Mode:2x200G ePDM-8QAM

a: When using a board whose line modulation format is 200G ePDM-QPSK or 2 x 200G ePDM-QPSK in an 80-wavelength system with a 50 GHz spacing, set the center wavelength to the median of two adjacent standard wavelengths (that is a standard wavelength plus 25 GHz), because the board must use a 100 GHz spacing during transmission.

b: The license name is 1*100G/200G Programmable Line License,Electronic.

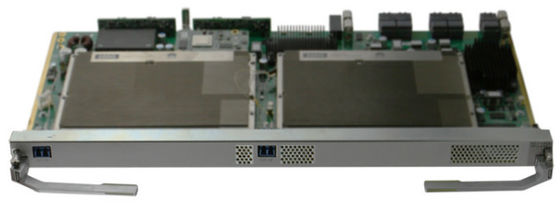

The signal conversion that the N402P board performs varies depending on the modes of port 1 and port 2. Details are as follows:

• When both port 1 and port 2 are set to 100G mode, the board performs mutual conversion between ODUk signals with the total bandwidth not exceeding 200 Gbit/s and two channels of OTU4 signals.
• When one port is set to 100G mode and the other port is set to 200G mode, the board performs mutual conversion between ODUk signals with the total bandwidth not exceeding 300 Gbit/s and one OTU4 signal plus one OTUC2 signal.
• When both port 1 and port 2 are set to 200G mode, the board performs mutual conversion between ODUk signals with the total bandwidth not exceeding 400 Gbit/s and two channels of OTUC2 signals.
• When port 1 is set to 400G mode, the board performs mutual conversion between ODUk signals with the total bandwidth not exceeding 400 Gbit/s and one OTUC4 signal.

• Supports service grooming with cross-connect boards. The service granularities are the sum of granularities supported by port 1 and port 2.

• The OTN function varies depending on the port mode.

• Supports the OTU4 interface on the WDM side.
• Supports the OTN frame format and overhead processing defined by ITU-T G.709.
• OTU4 layer: supports SM overhead processing.
• ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.

• Supports the OTUC2 interface on the WDM side.
• OTUC2 layer: supports SM overhead processing.
• ODUC2 layer: supports PM overhead processing.
• ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.

• Supports the OTUC4 interface on the WDM side.
• OTUC4 layer: supports SM overhead processing.
• ODUC4 layer: supports PM overhead processing.
• ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.

• TNU2N402PT52 supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing
• TNU1N402PT53 and TNU2N402PT51 support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.

• 100G QPSK:50GHz Fix/37.5GHz SuperChannel
• 200G 16QAM:50GHz Fix/37.5GHz SuperChannel
• 400G 16QAM:2x(50GHz Fix/37.5GHz SuperChannel)

• 100G QPSK: 50GHz Fix
• 200G QPSK :75GHz Flex/ 100GHz fix
• 400G QPSK :2x(75GHz Flex/ 100GHz fix)
• 200G 16QAM:50GHz Fix
• 400G 16QAM:2x(50GHz Fix)

• 100G QPSK:50GHz Fix
• 200G QPSK :75GHz Flex/ 100GHz fix
• 400G QPSK :2x(75GHz Flex/ 100GHz fix)
• 200G 16QAM:50GHz Fix
• 400G 16QAM:2x(50GHz Fix)
• 200G 8QAM :62.5GHz Flex/50GHz SuperChannel
• 400G 8QAM :2x(62.5GHz Flex/50GHz SuperChannel)

• Monitors BIP8 bytes (Bursty mode) to help locate line failures.
• Monitors parameters such as the bias current, temperature, and optical power of the laser.
• Monitors OTN alarms and performance events.

Port in 100G mode, port in 200G_16QAM mode : Supported

Port in other mode: Not supported

• Supports ODUk SNCP.
• Supports tributary SNCP protection.
• Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).

Supported

Port in 100G mode

• ODUk (k=0, 1, 2, 3, flex)

Port in 200G mode or 400G mode

• ODUk (k=0, 1, 2, 3, 4, flex)

Protocols or standards compliance

Protocols or standards for transparent transmission (non-performance monitoring)

IEEE 802.3u

IEEE 802.3z

IEEE 802.3ae

IEEE 802.3ba

ITU-T G.707

ITU-T G.782

ITU-T G.783

GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic

NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI)

NCITS FIBRE CHANNEL LINK SERVICES (FC-LS)

NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2)

NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3)

NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3)

NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH)

NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2)

SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems

ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI)

SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface

SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals

NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON)

ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC)

ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY)

ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM)

Protocols or standards for service processing (performance monitoring)

ITU-T G.805

ITU-T G.806

ITU-T G.709

ITU-T G.872

ITU-T G.7710

ITU-T G.798

ITU-T G.874

ITU-T M.3100

ITU-T G.874.1

ITU-T G.875

ITU-T G.808.1

ITU-T G.841

ITU-T G.8201

ITU-T G.873.1

ITU-T G.694.1
