Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNU1N401P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

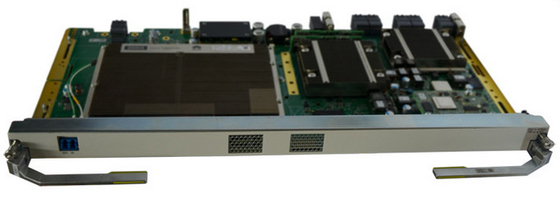

| TNU1N401P: | 1 * 100G/200G Programmable Line Service Processing Board |
|---|
The N401P board can work in line or relay mode and supports 100G or 200G in both modes.
| Function and Feature | 100G Mode | 200G Mode | |||||
|---|---|---|---|---|---|---|---|
| Basic functions | Supports the following service conversions:
The board support a mix of ODU0, ODU1, ODU2, ODU2e, ODU3, and ODUflex signals. | Supports the following service conversions:
The board support a mix of ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4 and ODUflex signals. | |||||
| Cross-connect capabilities | Supports backplane cross-connections of 80 ODU0, 40 ODU1, 10 ODU2, 10 ODU2e, 2 ODU3, 1 ODU4, or 80 ODUflex signals from/to the cross-connect board. | Supports backplane cross-connections of 160 ODU0, 80 ODU1, 20 ODU2, 20 ODU2e, 4 ODU3, 2 ODU4, or 160 ODUflex signals from/to the cross-connect board. | |||||
| License | No license is required. | To configure the board to work in 200G mode, you must obtain a license (1*100G/200G Programmable Line License,Electronic). | |||||
| OTN functions |
|
| |||||
| FEC coding | SDFEC2 | SDFEC | |||||
| NOTE: Boards that use different FEC modes cannot interconnect with each other. | |||||||
| WDM specifications | Supports ITU-T G.694.1-compliant DWDM specifications. | ||||||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. | ||||||
| ESC function | Supported | ||||||
| PRBS function | Supports the PRBS function on the WDM side. | ||||||
| LPT function | Not supported | ||||||
| Alarms and performance events monitoring |
| ||||||
| Regeneration board | When N401P boards are set to the same WDM-side rate, the WDM-side signals of an N401P board can be regenerated using other N401P boards using of the same WDM-side rate. | ||||||
| ALS function | Not supported | ||||||
| Test frame | Not supported | ||||||
| IEEE 1588v2 | Not supported | ||||||
| Physical clock | Not supported | ||||||
| Electrical-layer ASON | Supported | ||||||
| Optical-layer ASON | Supported | ||||||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. | ||||||
| Loopback | 100G Mode, supported:
| 200G Mode, supported:
| |||||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3ba ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | |||||
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | ||||||
| Function and Feature | 100G Mode | 200G Mode | ||
|---|---|---|---|---|
| Basic functions | Electrical regenerates OTU4 signals at an electrical REG station. | Electrical regenerates OTUC2 signals at an electrical REG station. | ||
| Supported service rate | OTU4: OTN service at a rate of 111.81 Gbit/s | OTUC2: OTN service at a rate of 211.45 Gbit/s | ||
| License | No license is required. | To configure the board to work in 200G mode, you must obtain a license (1*100G/200G Programmable Line License,Electronic). | ||
| OTN functions |
|
| ||
| FEC coding | SDFEC2 | SDFEC | ||
| NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||||
| WDM specifications | Supports ITU-T G.694.1-compliant DWDM specifications. | |||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. | |||
| ESC function | Supported | |||
| PRBS function | Not supported | |||
| Alarms and performance events monitoring |
| |||
| ALS function | Not supported | |||
| Test frame | Not supported | |||
| IEEE 1588v2 | Not supported | |||
| Physical clock | Not supported | |||
| Electrical-layer ASON | Not supported | |||
| Optical-layer ASON | Supported | |||
| Protection scheme | Not supported | |||
| Loopback | Not supported | |||
| Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | - | ||
| Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | |||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TNU1N401P (100G mode) | 180 | 190 |
| TNU1N401P (200G mode) | 235 | 250 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. NOTE: On the U2000, the queried nominal power consumption of this board is the maximum value among all modulation formats. | ||
