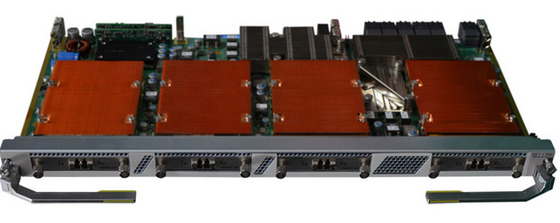

| TNU5N404: | 4 X 100 Gbit/s Line Service Processing Board | Port: | Shenzhen |
|---|
The N404 board supports electrical cross-connections, OTN interfaces, and ESC communication.
The N404 board can work in either line mode or relay mode. Table 1 and Table 2 describe the functions and features of the board.
| Function and Feature | Description | |||||
|---|---|---|---|---|---|---|
| Basic function | Supports the following service conversions:
Each port on the board support a mix of ODU0, ODU1, ODU2, ODU2e, ODU3 and ODUflex signals. | |||||
| Cross-connect capabilities | Supports backplane cross-connections of 320 ODU0, 160 ODU1, 40 ODU2, 40 ODU2e, 8 ODU3, 4 ODU4, or 320 ODUflex signals from/to the cross-connect board. | |||||
| OTN functions |
| |||||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | |||||
| Tunable wavelength function | Supports wavelength tunable optical modules. When wavelength tunable optical modules are used, 80 wavelengths in C-band with a 50 GHz spacing can be tuned for WDM-side optical signals. TNU5N404 supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing. | |||||
| ESC function | Supported | |||||
| PRBS function | Supports the PRBS function on the WDM side. | |||||
| LPT function | Not supported | |||||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | |||||
| Alarms and performance events monitoring |
| |||||
| Regeneration board |
| |||||
| ALS function | Not supported | |||||
| Test frame | Not supported | |||||
| IEEE 1588v2 | Not supported | |||||
| Physical clock |
| |||||
| Electrical-layer ASON | Supported | |||||
| Optical-layer ASON | Supported NOTE: Optical-layer ASON is not supported when a gray light optical module is used. | |||||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. | |||||
| Loopback | WDM Side Loopback | ODU3 Channel Loopback | ODU2 Channel Loopback | ODU1 Channel Loopback | ODU0 Channel Loopback | ODUflex Channel Loopback |
| Supported | Supported | Supported | Supported | Supported | Supported | |
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3ba ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | ||||
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | |||||
When using OTU4-4 x 28G -10km-CFP modules, the TNU5N404 board does not support the relay mode.
TNU4N404 board does not support the relay mode.
| Function and feature | Description | ||
|---|---|---|---|
| Basic function | Electrically regenerates optical signals at an electrical REG station. | ||
| Supported service rate | OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN functions |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports wavelength tunable optical modules. When wavelength tunable optical modules are used, 80 wavelengths in C-band with a 50 GHz spacing can be tuned for WDM-side optical signals. TNU5N404 supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing. | ||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding | When colored light optical modules are used: SDFEC2,HFEC PLUS NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Supported NOTE: Optical-layer ASON is not supported when a gray light optical module is used. | ||
| Protection scheme | Not supported | ||
| Loopback | Not supported | ||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | - | |
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
TNU4N404: 4.52 kg (9.96 lb.)
TNU5N404: 4.53 kg (9.98 lb.)
| Board | WDM-Side Optical Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TNU4N404 | OTU4-4×28G-10 km-CFP | 250 | 270 |
| TNU5N404 | OTU4-4×28G-10 km-CFP | 160 | 262 |
40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH+, T5U)-100G CFP 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, LH, T62)-100G CFP 12000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, Metro, T65)-100G CFP 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK (configurable FEC, coherent/wDCM, ULH+, TxA)-100G CFP | 250 | ||
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | |||
