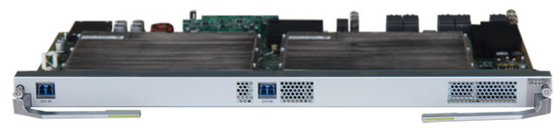

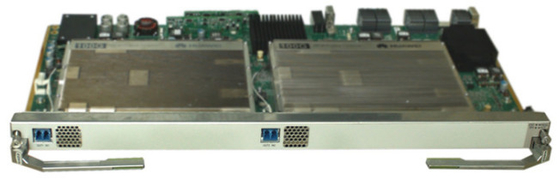

| TNU3N402: | 2 X 100 Gbit/s Line Service Processing Board | Port: | Shenzhen |
|---|
The N402 board supports electrical cross-connections, OTN interfaces, and ESC communication.
The N402 board can work in either line mode or relay mode. Table 1 and Table 2 describe the functions and features of the board.
| Function and Feature | Description | |||||
|---|---|---|---|---|---|---|
| Basic function | Supports the following service conversions:
Each port on the board support a mix of ODU0, ODU1, ODU3, ODU2, ODU2e, and ODUflex signals. | |||||
| Cross-connect capabilities | Supports backplane cross-connections of 160 ODU0, 80 ODU1, 20 ODU2, 20 ODU2e, 4 ODU3, 2 ODU4, or 160 ODUflex signals from/to the cross-connect board. | |||||
| OTN functions |
| |||||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | |||||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. TNU5N402 supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing. | |||||
| ESC function | Supported | |||||
| PRBS function | Supports the PRBS function on the WDM side. | |||||
| LPT function | Not supported | |||||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | |||||
| Alarms and performance events monitoring |
| |||||
| Regeneration board | The WDM-side signals of an N402 board can be regenerated using the N401, N402, LTX, or NS4 board of the same type. For example,
| |||||
| ALS function | Not supported | |||||
| Test frame | Not supported | |||||
| IEEE 1588v2 | Not supported | |||||
| Physical clock |
| |||||
| Electrical-layer ASON | Supported | |||||
| Optical-layer ASON | Supported NOTE: Optical-layer ASON is not supported when a gray light optical module is used. | |||||
| Protection scheme |
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. | |||||
| Loopback | WDM Side Loopback | ODU3 Channel Loopback | ODU2 Channel Loopback | ODU1 Channel Loopback | ODU0 Channel Loopback | ODUflex Channel Loopback |
| Supported | Supported | Supported | Supported | Supported | Supported | |
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3ba ITU-T G.707 ITU-T G.782 ITU-T G.783 GR-253-CORE Synchronous Optical Network (SONET) Transport Systems: Common Generic NCITS FIBRE CHANNEL PHYSICAL INTERFACES (FC-PI) NCITS FIBRE CHANNEL LINK SERVICES (FC-LS) NCITS FIBRE CHANNEL FRAMING AND SIGNALING-2 (FC-FS-2) NCITS FIBRE CHANNEL BACKBONE-3 (FC-BB-3) NCITS FIBRE CHANNEL SWITCH FABRIC-3 (FC-SW-3) NCITS FIBRE CHANNEL - PHYSICAL AND SIGNALING INTERFACE (FC-PH) NCITS FIBRE CHANNEL SINGLE-BYTE COMMAND CODE SETS-2 MAPPING PROTOCOL (FC-SB-2) SMPTE 292M Bit-Serial Digital Interface for High-Definition Television Systems ETSI TR 101 891 Professional Interfaces: Guidelines for the implementation and usage of the DVB Asynchronous Serial Interface (ASI) SMPTE 259M 10-Bit 4:2:2 Component and 4fsc Composite Digital Signals - Serial Digital Interface SMPTE 297-2006 Serial Digital Fiber Transmission System for SMPTE 259M, SMPTE 344M, SMPTE 292 and SMPTE 424M Signals NCITS SBCON Single-Byte Command Code Sets CONnection architecture (SBCON) ANSI X3.139 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Media Access Control (MAC) ANSI X3.148 Information Systems - Fiber Distributed Data Interface (FDDI) - Token Ring Physical Layer Protocol (PHY) ANSI X3.166 Information Systems - Fiber Distributed Data Interface (FDDI) Physical Layer Medium Dependent (PDM) | ||||
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.873.1 ITU-T G.694.1 | |||||
The TNV1N402C01 board variant does not support relay mode.
When the OTU4-4 x 28G -10km-CFP modules are used, the TNU5N402board does not support relay mode.
| Function and feature | Description | ||
|---|---|---|---|
| Basic function | Electrically regenerates optical signals at an electrical REG station. | ||
| Supported service rate | OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN functions |
| ||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. TNU5N402 supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing. | ||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding |
NOTE: Boards that use different FEC modes cannot interconnect with each other. | ||
| Alarms and performance events monitoring |
| ||
| ALS function | Not supported | ||
| Test frame | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Supported NOTE: Optical-layer ASON is not supported when a gray light optical module is used. | ||
| Protection scheme | Not supported | ||
| Loopback | Not supported | ||
Protocols or standards compliance | Protocols or standards for transparent transmission (non-performance monitoring) | - | |
Protocols or standards for service processing (performance monitoring) | ITU-T G.805 ITU-T G.806 ITU-T G.709 ITU-T G.872 ITU-T G.7710 ITU-T G.798 ITU-T G.874 ITU-T M.3100 ITU-T G.874.1 ITU-T G.875 ITU-T G.808.1 ITU-T G.841 ITU-T G.8201 ITU-T G.694.1 | ||
| Board | WDM-Side Optical Module | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|---|
| TNU1N402T11 | 55000ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN | 269 | 295 |
| TNU2N402 | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN | 283 | 298 |
55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN | |||
40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN | |||
150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN | |||
12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM,Metro)-PIN | |||
| TNU3N402 | 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2, Enhanced)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN 150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN 12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM,Metro)-PIN 120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN | 183 | 194 |
| TNU5N402 | 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH+, T5U)-100G CFP 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, LH, T62)-100G CFP 12000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM,Metro, T65)-100G CFP 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK (configurable FEC, coherent/wDCM, ULH+, TxA)-100G CFP | 167 | 175 |
OTU4-4 x 28G -10km-CFP | 114 | ||
| TNV1N402C01 | OTU4-4×28G-10km-CFP | 155 | 190 |
| TNV2N402T01 | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN | 270 | 293 |
